Panduit GES99F-A-C0 Grommet Edging, Solid 100’;, Adhesive Polyester...
Description
Description

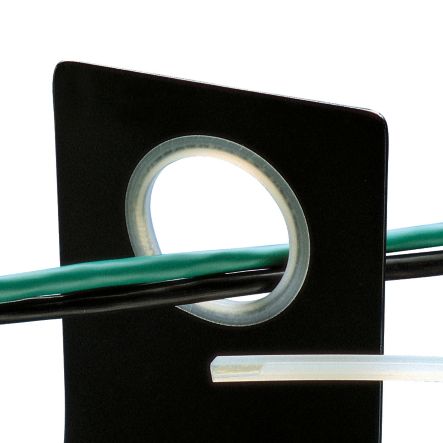

The GES99F-A-C0 Polyethylene Slotted Grommet Edging protects and prevents wires and cables from chafing against sharp edges of panel walls and knockouts. Slotted edging is recommended for use on irregularly shaped and round panel holes. The material is highly flexible, while the adhesive lining ensures the product will stay in place. Packaged on a 100' (30.5m) reel for easy handling and dispensing. Polyethylene. Designed for 0.062"-0.099" (1.6 mm-2.5 mm) thick panels. Color Black. 1 per package
Panduit - GES99F-A-C0 - Features
- General purpose material for indoor use up to 122F (50C)
- Provided in .030"; (0.8mm) thick material making it highly flexible
- Use on straight edges
- Adhesive ensures product stays in place
Specifications
Specifications
Panduit - GES99F-A-C0 - Product Categories
- Wire Routing, Management & Protection
- Grommet Edging
Panduit - GES99F-A-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GES99F-A-C0 |
| Item Description | Solid Grommet, Black, PE, 2.5mm Max Panel, 30.5m L,PK1 |
| Note | Designed for straight edges |
| Product Type | Solid Grommet Edging |
| Color | Black |
| Material | Polyethylene |
| Maximum Compatible Panel Thickness (In.) | 0.099 |
| Maximum Compatible Panel Thickness (mm) | 2.5 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Compatible Panel Thickness (In.) | 0.062 |
| Minimum Compatible Panel Thickness (mm) | 1.6 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.19 |
| Overall Height (mm) | 4.7 |
| Overall Width (In.) | 0.17 |
| Overall Width (mm) | 4.3 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Weather-Resistant Abrasion Protection |
| Standards Met | RoHS Compliant |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Part Features | Provides protection for cables being installed where there might be sharp edges with irregular shaped and round panel holes. |
Panduit - GES99F-A-C0 - Package Information
| UPC | 07498362707 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3169 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - GES99F-A-C0 - Videos
| Video 1 | Click to View |
|---|
