Panduit GES99F-C | Solid Grommet Edging | UPC - 07498360183
Description
Description

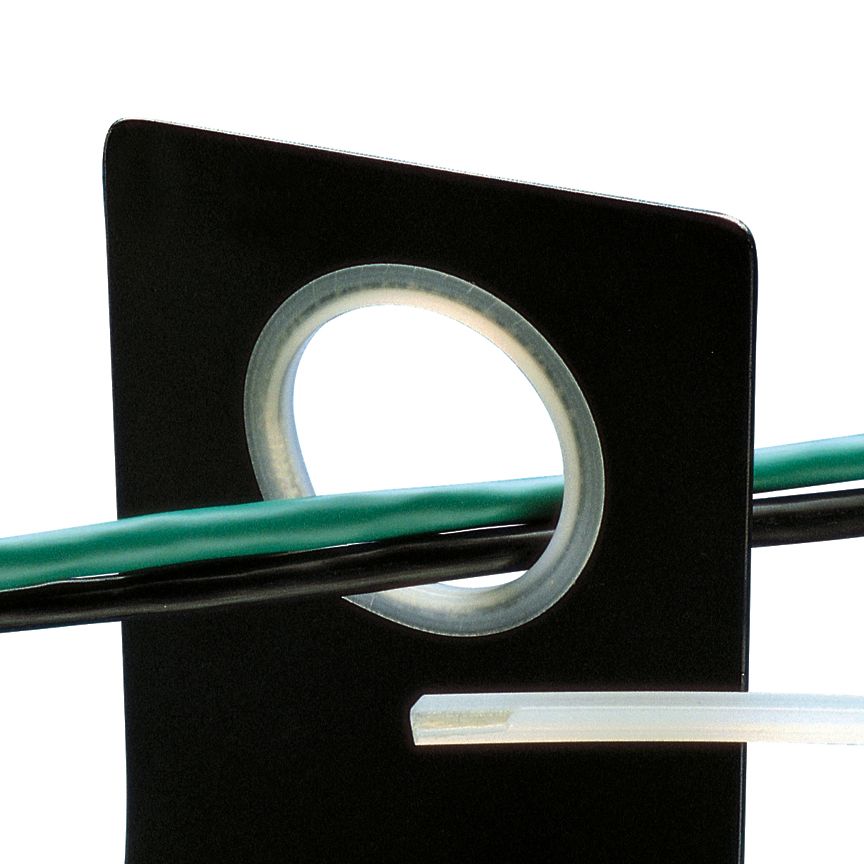

Protects and prevent wires and cables from chafing against sharp edges of panel walls and knockouts. In addition to standard grommet edging, Panduit offers grommet edging with a pressure sensitive adhesive that lines the base of the product, providing an easy, clean and secure application. Grommet edging is available in nylon 6 or natural or weather-resistant polyethylene for use on straight or irregular shaped surfaces. Grommet edging is a part of the innovative solutions Panduit provides to protect wire and cable to help you manage your physical infrastructure.
Panduit Grommet Edging, Type GES Non-Adhesive Solid, 0.062 to 0.099 in Panel Thickness, 100 ft Length, 0.19 in Height, 0.17 in Width, -40 to 122 deg F, Flammability: UL94 HB, Polyethylene, Natural
Features + Benefits
- Provides protection for cables being installed where there might be sharp edges on straight edges
Panduit GES99F-C Key Specs
| Product Type | Solid Grommet Edging |
| Color | Natural |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Maximum Compatible Panel Thickness (In.) | 0.09 |
| Maximum Compatible Panel Thickness (mm) | 2.5 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Compatible Panel Thickness (In.) | 0.06 |
| Minimum Compatible Panel Thickness (mm) | 1.6 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.19 |
| Overall Height (mm) | 4.7 |
| Overall Width (In.) | 0.17 |
| Overall Width (mm) | 4.3 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Abrasion Protection |
| Standards Met | RoHS Compliant |
| Application | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Part Features | Provides protection for cables being installed where there might be sharp edges on straight edges |
Panduit GES99F-C Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - GEE36F-C Product Page | Download and View |
| Part Drawings | Roll Form Grommet Edging: GB0239FU | Download and View |
| Product Bulletins | Grommet Edging: WACB34 | Download and View |
| Technical References | Abrasion Protection Shelf Life | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
