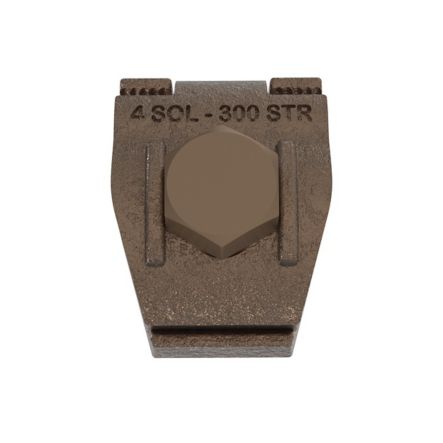

Panduit GM-3-Q | StructuredGround GM-3-Q Grd Clamp, Copper Alloy, PK25
Description
Description

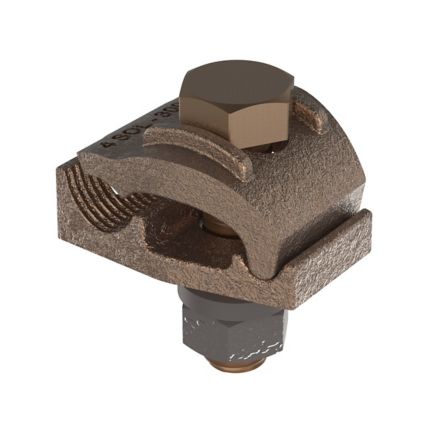

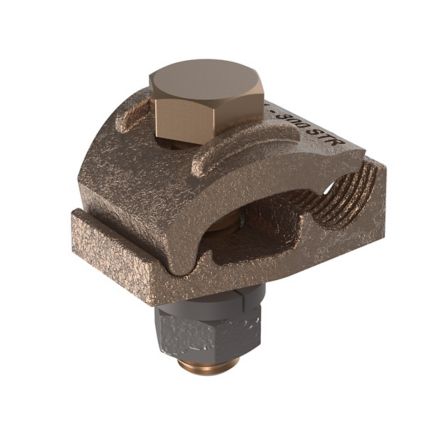

The GM-3-Q Bronze Grounding Clamp is used to ground copper code conductor to flat surfaces. Cast from high strength, electrolytic brinz to provide reliable grouding connections, high strenght silicon bronze hardware for long term reliable assembly. Accomidates a wide range of conductor sizes, incorporates spacer plate to separate conductor from mounting surface. Meets cULus 467 for grouding and bonding, suitable for direct burial in earth or concrete.
Panduit - GM-3-Q - Features
- Bronze grounding two piece heel and toe clamp.
- Used to ground copper code conductor to flat surfaces
- Cast from high strength, electrolytic bronze to provide reliable grounding connections
- High strength silicon bronze hardware for long term reliable assembly
- Accommodates a wide range of conductor sizes - minimizes inventory requirements
- Incorporates spacer plate to separate conductor from mounting surface
- UL Listed for grounding and bonding and suitable for direct burial in earth or concrete
Specifications
Specifications
Panduit - GM-3-Q - Product Categories
- Grounding & Bonding
- Flat Surface Grounding Clamps
Panduit - GM-3-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GM-3-Q |
| Item Description | StructuredGround GM-3-Q Grd Clamp, Copper Alloy, PK25 |
| Sub Brand | StructuredGround |
| Product Type | Grounding Clamp |
| Material | Copper Alloy |
| Maximum Compatible Conductor Size (kcmil) | 250 |
| Hex Size (In.) | 1/2 |
| Hex Size (mm) | 12.7 |
| Minimum Compatible Conductor Size (AWG SOL) | 2/0 |
| Overall Length (In.) | 2.13 |
| Overall Length (mm) | 54.1 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| Overall Height (In.) | 2 |
| Overall Height (mm) | 50.8 |
| Standards Met | cULus LISTED TO UL467 |
| Application | Utility/Ground Grid |
Panduit - GM-3-Q - Package Information
| UPC | 07498360514 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.1221 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - GM-3-Q - Videos
| Video 1 | Click to View |
|---|
