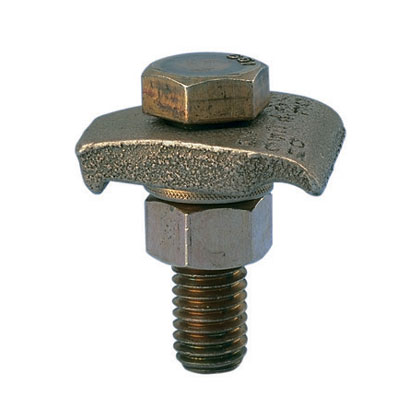

Panduit GMS-3-Q | Grounding Clamp | UPC - 07498360512

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe, and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit StructuredGround Grounding Toe Clamp, Series: GMS, 3/4 in Rod, Solid Copper Conductor, 2/0 AWG to 250 kcmil Conductor, Bronze/Silicon Bronze, Bronze, 2.13 in L x 1.5 in W x 2 in H

Features + Benefits

• Cast from high strength, electrolytic bronze to provide reliable grounding connections
• High strength silicon bronze hardware for long term reliable assembly
• Accommodates a wide range of conductor sizes minimizes inventory requirements
• UL Listed for grounding and bonding and suitable for direct burial in earth or concrete
• Used to ground copper code conductor to flat surfaces

Panduit GMS-3-Q | Grounding Clamp | UPC - 07498360512 Key Specs

---

Panduit GMS-3-Q | Grounding Clamp | UPC - 07498360512 Environmental Information

Panduit's RoHS Statement

Download and View
