Panduit GPCW6-4-12-X | Pipe Clamp, 1/2-1 in, w/Swivel Hub, 50PK

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit StructuredGround Grounding Clamp, 1/2 to 3/4 in EMT, 1/2 in Rigid Conduit, 2-1/2 to 4 in Pipe, Copper/Solid/Stranded Conductor, 10 to 6 AWG Conductor, Cast Bronze/Steel Screw, Electrolytic/Zinc Plated

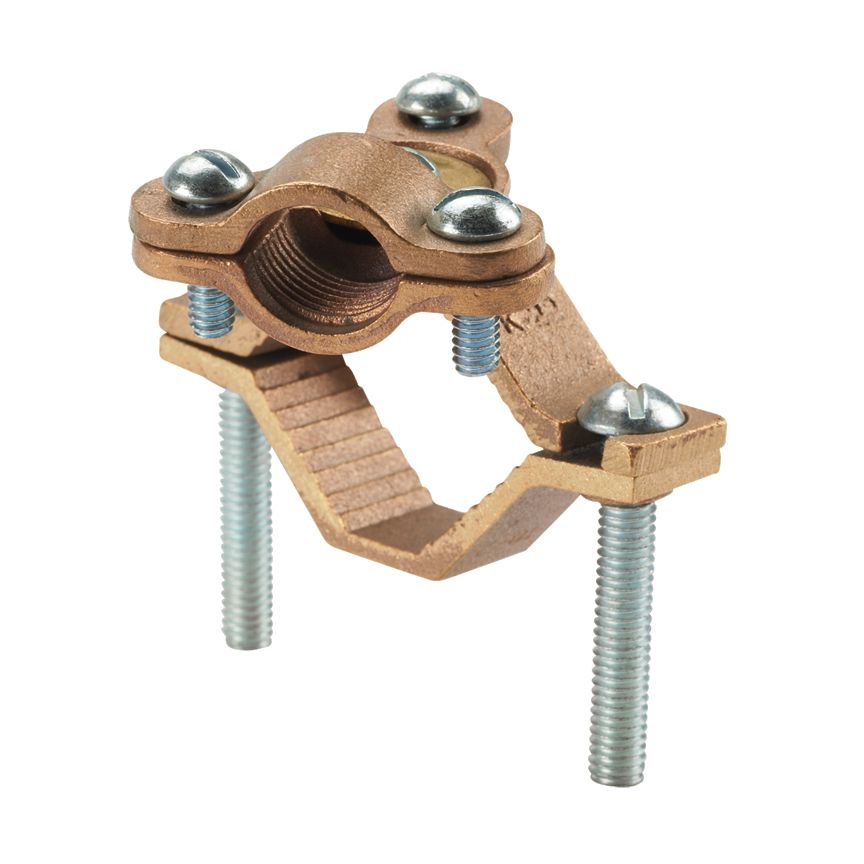

Bronze grounding clamp with conduit hub and swivel, #10 SOL - #6 STR AWG conductor size range, 2 1/2" - 4" (63.5mm - 101.6mm) iron pipe size, 1/2" - 3/4" (12.7mm - 19.1mm) EMT 1/2" (12.7mm) rigid conduit hub size, 4.25" (108.0mm) pipe clamp screw length.

Bronze grounding clamp with conduit hub and swivel, #10 SOL - #6 STR AWG conductor size range, 2 1/2" - 4" (63.5mm - 101.6mm) iron pipe size, 1/2" - 3/4" (12.7mm - 19.1mm) EMT 1/2" (12.7mm) rigid conduit hub size, 4.25" (108.0mm) pipe clamp screw lengt h.
