Brand: Panduit
|
SKU:
GPL-34-3

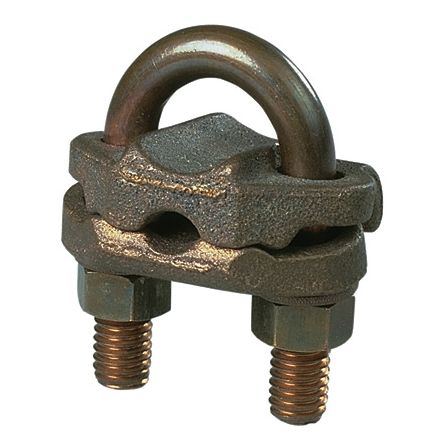

Panduit GPL-34-3 | StructuredGround GPL-34-3 Bronze Grounding Clamp, U-Bolt, single cable
Regular price
$137.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GPL-34-3 | StructuredGround GPL-34-3 Bronze Grounding Clamp...
Regular price
$137.32
Unit price
Description
Description
Panduit GPL-34-3 | StructuredGround GPL-34-3 Bronze Grounding Clamp, U-Bolt, single cable
Bronze grounding clamp, .365-.575" wire dia. range, 2" IPS.
Panduit - GPL-34-3 - Features
- Bronze grounding clamp, .365-.575"; wire dia. range, 2"; IPS.
- Used to ground copper conductor parallel or at a right angle to a rod, tube, or pipe
- Made from high strength, electrolytic cast bronze
- High strength silicon bronze hardware provides long term reliable assembly
- Accommodates a wide range of pipe, tube, rod and conductor sizes - minimizes inventory requirements
- UL Listed for grounding and bonding and suitable for direct burial in earth or concrete
Specifications
Specifications
Panduit - GPL-34-3 - Product Categories
- Grounding & Bonding
- U-Bolt Grounding Clamps
Panduit - GPL-34-3 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GPL-34-3 |
| Item Description | StructuredGround GPL-34-3 Bronze Grounding Clamp, U-Bolt, single cable |
| Sub Brand | StructuredGround |
| Material | Bronze/Silicon Bronze |
| Maximum Copper Conductor Size (AWG STR) | 2/0 |
| Minimum Copper Conductor Size (AWG SOL) | 4 |
| Iron Pipe Size (In.) | 2 |
| Iron Pipe Size (mm) | 50.8 |
| Number Of Wires | 1 |
| Overall Length (In.) | 3.75 |
| Overall Length (mm) | 95.3 |
| Overall Width (In.) | 1.63 |
| Overall Width (mm) | 41.4 |
| Overall Height (In.) | 4.25 |
| Overall Height (mm) | 107.9 |
| Bolt Diameter (In.) | 3/8 |
| Bolt Diameter (mm) | 9.5 |
| Hex Size (In.) | 9/16 |
| Hex Size (mm) | 14.3 |
| Application | Utility/Ground Grid |
| Standards Met | cULus Listed 467, DB Rated |
| Surface Treatment | Galvanic/electrolytic zinc plated |
| Product Type | Bronze Grounding Clamp, U-Bolt, single cable |
| Part Features | Accommodates a wide range of pipe, tube, rod and conductor sizes, minimizing inventory requirements, saving cost. |
Panduit - GPL-34-3 - Package Information
| UPC | 07498360503 |
|---|---|
| Standard Package Quantity | 3 |
| Standard Package Volume (cf) | 0.1047 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
