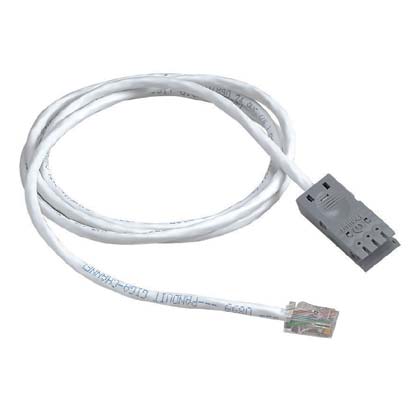

Panduit GPPC4IG7BY | GP6 PCAssembly, 4 Pr, T568B RJ45, 7 Ft
Regular price
$33.41
Unit price
Brand: Panduit
|
SKU:
MO07-PA7-09
Regular price
$33.41
Unit price
Description
Description
Panduit GPPC4IG7BY | GP6 PCAssembly,4 Pr,T568B RJ45,7 Ft
Connect your network devices effortlessly with our four pair connector to RJ45 patch cord. Save time on installation and ensure reliable network connections.
Panduit GP6 PLUS Patch Cord Assembly, U/UTP, Category: Cat 6, 24 AWG Conductor, GP6 PLUS Plug/RJ45 Pan-Plug T568A Boot Connector, 7 ft Cord
Panduit - GPPC4IG7BY - Features
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager optimizes performance and consistency by reducing untwist at plug
- Patented tangle-free latch prevents snags and provides easy release, saving time and tangle providing reliability on frequent moves, adds and changes
- Slender strain relief boot provides easy access in high density applications
- Robust construction rated to 2500 mating cycles
- RJ45 plug lock-in device secures plug into jack to prevent unauthorized removal of patch cord
Specifications
Specifications
Panduit - GPPC4IG7BY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GPPC4IG7BY |
| Product Type | Patch Cord Assembly |
| Cable Construction | U/UTP |
| Conductor Gauge (AWG) | 24 |
| Connector 1 Type | 4 Pair GP6 |
| Contact Material | Tinned Copper |
| Sub Brand | GP6 |
| Overall Length (mm) | 2134 |
| Plug Housing Material | Polycarbonate |
| Standards Met | Exceeds all channel and component requirements of ANSI/TIA-568.2-D Category 6 standard, Standard density exceeds all channel requirements of ANSI/TIA-568.2-D Category 6A standard, Meets IEC 60352-4 requirements; can withstand repeated terminations up to 200 cycles, RoHS compliant |
| Wiring Scheme | RJ45/T568B |
| Performance Level | Category 6 |
| Part Features | The GP6 plus patch cord is polarized to prevent reverse installation on the connector block, incorporates a cable jacket retention feature which minimizes wire untwisting, and has an integral strain relief. |
| UPC | 07498305372 |
