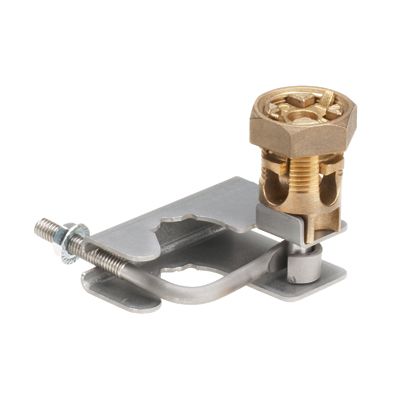

Panduit GPQC15-1/0 | Grounding Clamp,1 1/2 Round,EA
Our access floor grounding clamp simplifies installation and ensures reliable grounding for raised floor environments, protecting your network equipment while maximizing system uptime.
Panduit StructuredGround Access Floor Grounding Clamp, Series: GPQC, 1-1/2 in Rod, Solid/Stranded Copper Conductor, 6 to 1/0 AWG Conductor, Electrolytic Bronze, Bronze/Silver, 3.19 in H x 3.44 in W x 4.47 in D
Panduit - GPQC15-1/0 - Features
- Designed to bond perpendicular MCBN conductors
- Bonds to pedestal with a single bolt to simplify installation
- Bond round and square access floor pedestals for greater flexibility
Specifications
Specifications
Panduit - GPQC15-1/0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GPQC15-1/0 |
| Sub Brand | StructuredGround |
| Compatible Pedestal Width (mm) | 38.1 |
| Clamp Material | Electrolytic Bronze |
| Finish/Coating | Zinc-Plated |
| Maximum Compatible Conductor Size (AWG STR) | 1/0 |
| Minimum Compatible Conductor Size (AWG SOL) | 6 |
| Overall Depth (In.) | 4.47 |
| Overall Depth (mm) | 113.5 |
| Overall Width (In.) | 3.44 |
| Overall Width (mm) | 87.4 |
| Overall Height (In.) | 3.19 |
| Overall Height (mm) | 81 |
| Conductor Tightening Torque (in·lb) | 12.5 |
| Clamp Tightening Torque (in·lb) | 32 |
| Application | Telecom/Data Center |
| Standards Met | TIA-607-B Compliant, UL 467 Listed and CSA Certified |
| Product Type | Pedestal Grounding Clamp |
| Part Features | Designed to bond perpendicular MCBN conductors, Bonds to pedestal with a single bolt to simplify installation. |
| UPC | 07498309848 |
Panduit - GPQC15-1/0 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8205.70.0090 |
