Panduit GRC2-34-T | StructuredGround™ Bronze Grounding Rod Clamp

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe, and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit StructuredGround Grounding Rod Clamp, Standard Duty, 3/4 in Rod, Copper/Solid/Stranded Conductor, 10 to 2 AWG Conductor, Aluminum Bronze/Bronze Phosphorous, Electrolytic, 0.71 in L x 0.81 in W x 1.48 in H Dimensions

Ensure a corrosion-resistant connection between a grounding conductor and rod with our clamp, ideal for outdoor electrical systems needing reliable grounding.

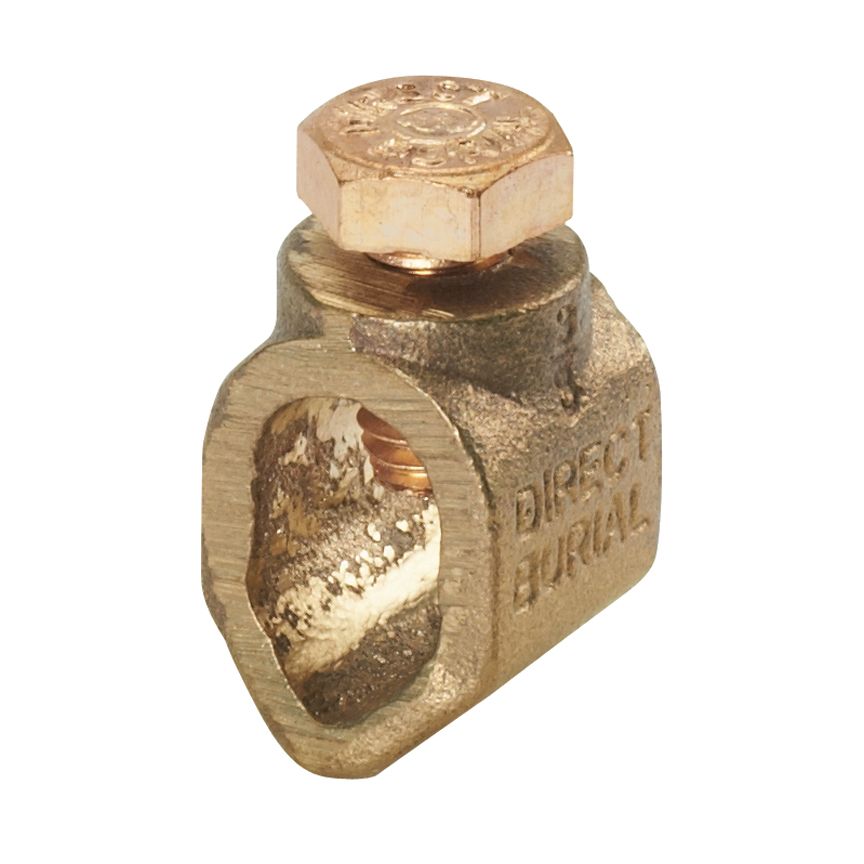

Bronze ground rod clamp, standard duty, direct burial, 3/4" (19.1mm) ground rod size, #10 SOL " #2 STR AWG conductor size range, 1/2" (12.7mm) hex head size, 1.48" (37.6mm) casting height, 0.71" (18.0mm) casting width.
