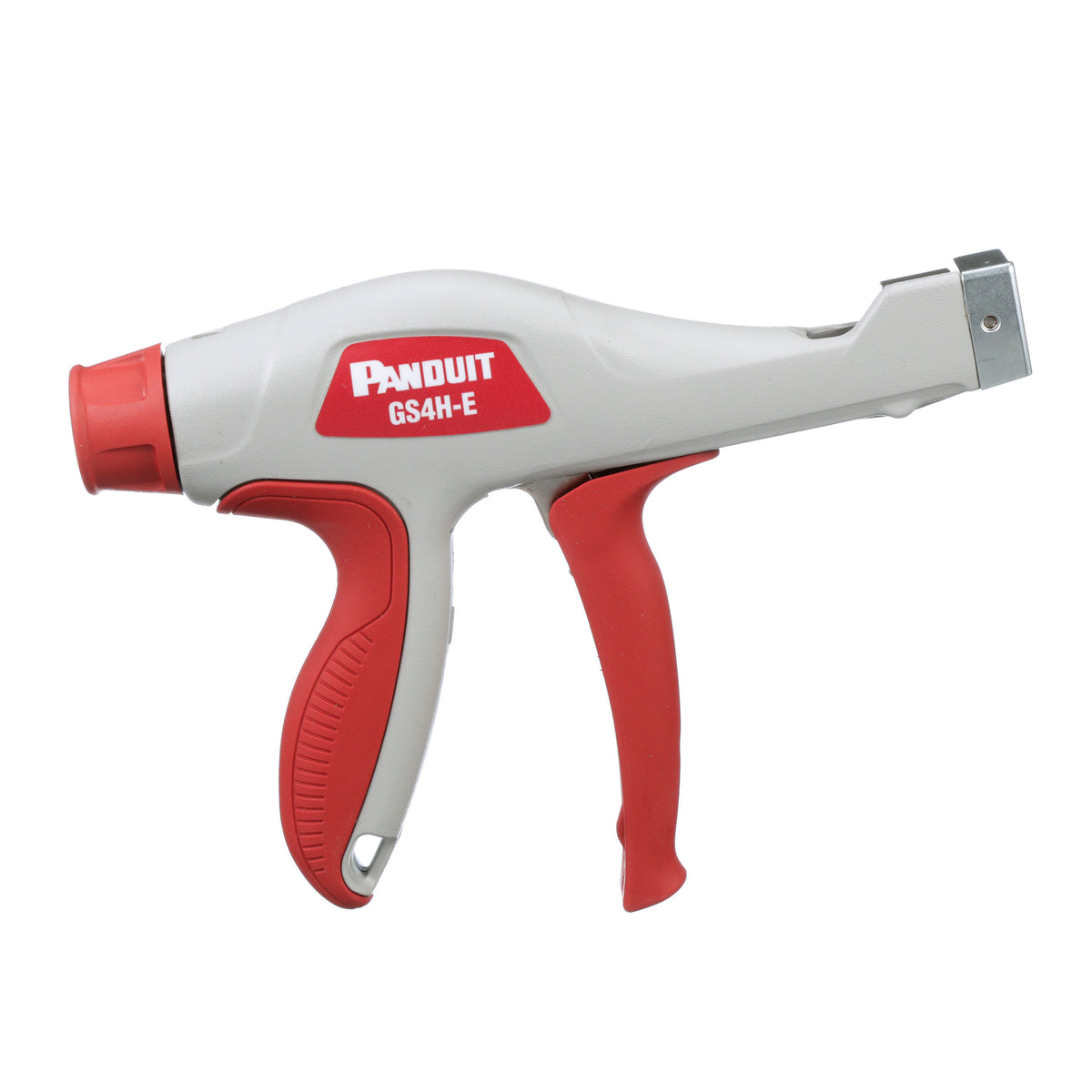

Panduit GS4H-E | Cable Tie Hand Tool | UPC - 61305625569
Description
Description
Panduit ergonomic series of hand-operated, tool-controlled tension and cut-off cable tie installation tools are the most preferred hand-operated tools in the industry. These versatile tools can be used for production, maintenance or construction applications. The ergonomic series of tools is excellent for low to medium volume applications (under 50,000 ties/year) and promote worker safety, help reduce downtime, improve productivity and provide the lowest total installed cost.
Panduit Cable Tie Tool, Adjustable Tension Resin, Manual Clipping Tool, 50 lb Standard to 175 lb Heavy Cable Tie, Ergonomic Handle, Light Gray/Red, Metal, 5.74 in H x 7.8 in W Dimensions
Features + Benefits
- Tool controlled tension provides flush cut off and speeds installation to lower installed cost
- Lightweight and balanced
- Easy to change tension adjustment and easy to operate
- A combination of design, operation and construction features provides a long service life
- No special maintenance required
- Improved cable tie cut off mechanism that minimizes the impact to the installer's hand by more than 40% the lowest in the industry
- Low handle force required to cut off the cable tie 15% lower handle force than comparable tool
Panduit GS4H-E Key Specs
| Application | Production, Maintenance, Construction |
| Note | Tool housing is made of metal for added durability |
| Product Type | Cable Tie Hand Tool |
| Color | Light Gray, Red |
| Finish/Coating | Powder-Coated |
| Sub Brand | PanZone |
| Overall Height (In.) | 5.73 |
| Overall Height (mm) | 145.6 |
| Overall Length (In.) | 7.8 |
| Overall Length (mm) | 198.1 |
| Overall Width (In.) | 1.27 |
| Overall Width (mm) | 32.3 |
| Standards Met | QPL per Mil. Std. SAE AS81306 and Mil. Spec. SAE AS90387 Mil. Spec. Part Number MS90387-2 |
| Military Cross Reference Number | MS90387-2 |
| For Use With | For Panduit S, LH and H cross-section cable ties |
Panduit GS4H-E Data Sheets
| Line Cards | Heavy Duty Cable Management Solutions: CMLC01--SA | Download and View |
| Installation Documents | KGTS-ETL Tension Lockout Kit Installation Instructions For: GTS-E, GS2B-E, GTH-E, GS4H-E, GS4EH-E and GS4MT-E Tools | Download and View |
| Part Drawings | CD, GS4H-E Drawing | Download and View |
| Installation Documents | GS4H-E Cable Tie Installation Tool Operating Instructions | Download and View |
| Installation Documents | Screw-Type Tension Lockout Kit For: GS2B-E, GS4H-E & GS4EH-E & GS4MT-E Tools | Download and View |
| Product Bulletins | Ergonomic Cable Tie Installation Hand Tools. | Download and View |
| Application Guides | Best Seller Products for Industrial Construction, MRO and OEM Application Guide ELCB33 | Download and View |
