Brand: Panduit
|
SKU:
9785794

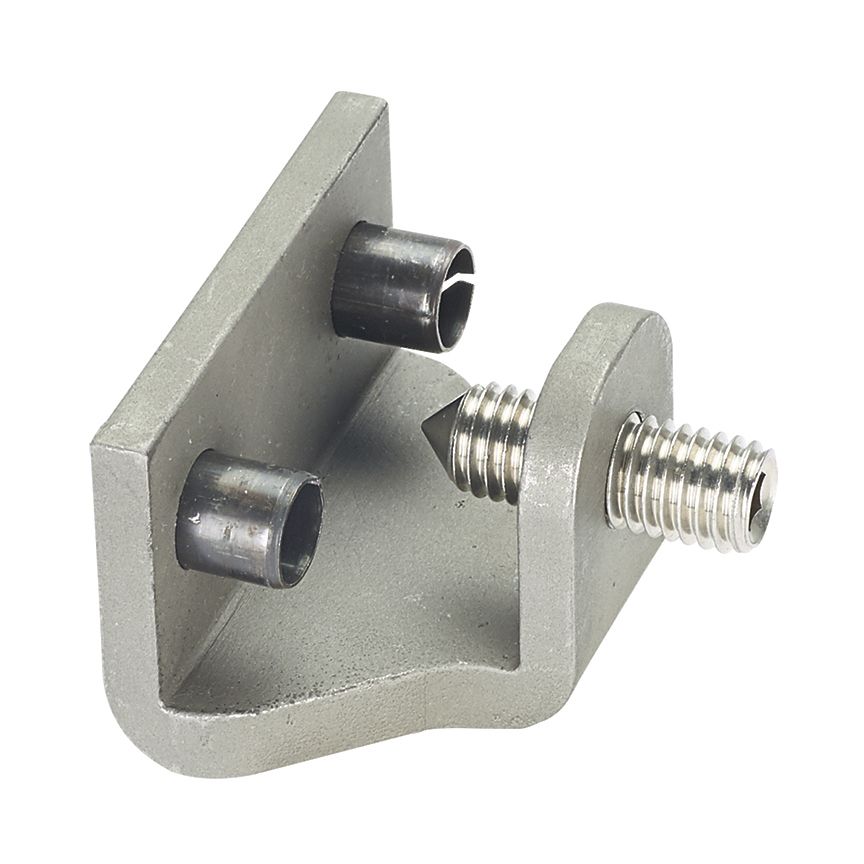

Panduit GUBC4/0-6 | Beam Grounding Clamp | UPC - 61305625517
Regular price
$113.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GUBC4/0-6 | Beam Grounding Clamp | UPC - 61305625517
Regular price
$113.74
Unit price
Description
Description
Panduit StructuredGround Beam Grounding Clamp, Light Duty, Solid/Stranded Conductor, 6 to 4/0 AWG Conductor, (2) Hole NEMA Lug, 2.75 in L x 1.65 in W x 1.9 in H
Features + Benefits
- Universal, fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams
- Clamp comes equipped with a single cone point screw requiring a standard 1/4 in key hex wrench to mechanically fix clamp to structural beam
Panduit GUBC4/0-6 Key Specs
| Sub Brand | StructuredGround |
| Stud Hole Spacing (In.) | 0.5 |
| Stud Hole Spacing (mm) | 12.7 |
| Overall Length (In.) | 2.75 |
| Overall Length (mm) | 69.9 |
| Overall Width (In.) | 1.65 |
| Overall Width (mm) | 41.9 |
| Overall Height (In.) | 1.9 |
| Overall Height (mm) | 48.3 |
| Standards Met | cULus Listed - 467, rated for copper conductor #6 SOL – 4/0 STR; DB rated (suitable for direct burial in earth or concrete) |
| Product Type | Beam Grounding Clamp |
| Part Features | Universal, fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams. Includes metal stays to position a 2-hole NEMA lug (requires no mounting hardware). Clamp comes equipped with a single cone-point screw requiring a standard 1/4" key hex wrench to mechanically fix clamp to structural beam. Tube of anti-oxidant included. |
Panduit GUBC4/0-6 Data Sheets
| Part Drawings | GUBC4/0-6 Light-Duty Beam Grounding Clamp | Download and View |
| Installation Documents | Beam Clamp - GUBC4/0-6 | Download and View |
