Brand: Panduit
|
SKU:
GUBC500-6
Panduit GUBC500-6 | StructuredGround GUBC500-6 Beam Grd Clamp, Copper, PK1
Regular price
$307.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit GUBC500-6 | StructuredGround GUBC500-6 Beam Grd Clamp, Copp...
Regular price
$307.70
Unit price
Description
Description
Panduit GUBC500-6 | StructuredGround GUBC500-6 Beam Grd Clamp, Copper, PK1

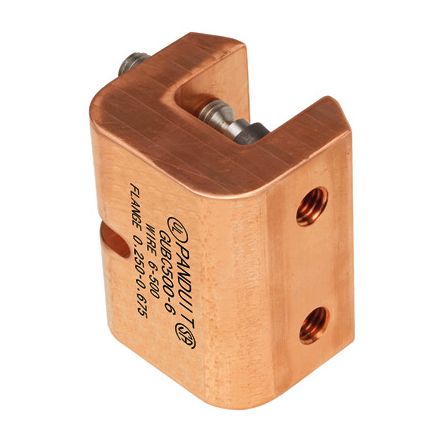

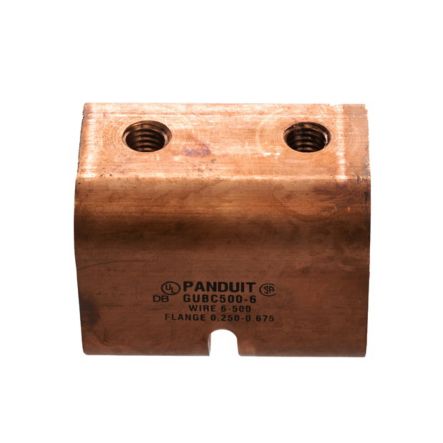

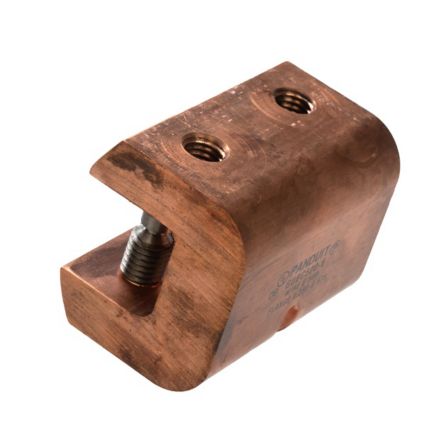

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014.
Specifications
Specifications
Panduit - GUBC500-6 - Product Categories
- Grounding & Bonding
- Universal Beam Grounding Clamps
Panduit - GUBC500-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | GUBC500-6 |
| Item Description | StructuredGround GUBC500-6 Beam Grd Clamp, Copper, PK1 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 3.15 |
| Overall Length (mm) | 80 |
| Material | Copper |
| Overall Width (In.) | 2.13 |
| Overall Width (mm) | 54 |
| Overall Height (In.) | 2.5 |
| Overall Height (mm) | 63.5 |
| Maximum Copper Conductor Size (kcmil) | 500 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Standards Met | Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A). |
| Application | Utility/Ground Grid |
| Product Type | Beam Grounding Clamp |
| Part Features | Universal, fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams.<CRLF>Provide a mounting pad suitable for a two-hole compression lug.<CRLF>Install quickly and easily with a standard 1/4" key hex wrench tooling. |
Panduit - GUBC500-6 - Package Information
| UPC | 07498300961 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0203 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
