Panduit H000X084H2C | P1 Military-Grade Polyolefin Continuous Heat-...
Description
Description

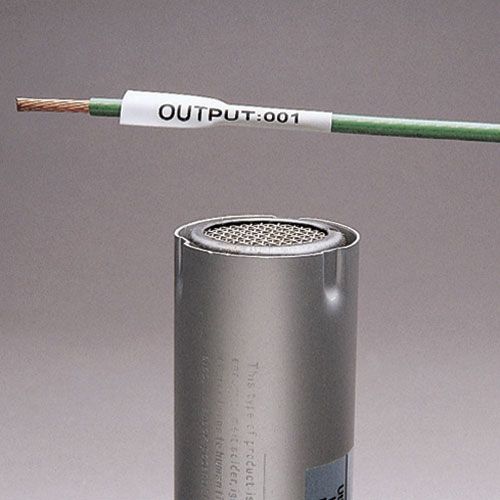

The portable printer continuous heat shrink labels in yellow are made of military-grade polyolefin. They measure 0.5" (12.7mm) diameter, 6’ (1.8m) length, and 0.84" (21.3mm) width and have a wire range of 8"1 AWG. The fast-loading P1 label cassette inc ludes both label material and ribbon for easy label changing.
Panduit P1 Heat Shrink Label Cassette, Continuous Military Grade, 6 ft Length, 0.84 in Width, 8 to 1 AWG Wire, Yellow Marker, Polyolefin, -67 to 275 deg F
Protect critical wires and cables with our military-grade polyolefin continuous heat-shrink label cassette. It offers reliable protection and clear identification in demanding environments.
Panduit - H000X084H2C - Features
- P1 Label Cassette contains an integrated memory device for automatic formatting, recall of last legend used, and number of labels remaining in the cassette
- Fast loading label cassette includes both label material and ribbon to make changing labels easy
- Each cassette contains a continuous roll of non-adhesive flattened polyolefin that can be cut-to-length
- Shrink ratio 3:1
- Use with PanTher LS8E or Cougar LS9 hand-held thermal transfer printers
Specifications
Specifications
Panduit - H000X084H2C - Specifications
| Type | Labels |
|---|---|
| UNSPSC Code | 55120000 |
| Note | For use with LS8E and LS8EQ printers |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 8-1 |
| Material | Polyolefin |
| Resistance Properties | Military Grade |
| Standards Met | MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability. |
| Sub Brand | P1™ |
| Maximum Cable Diameter (In.) | 0.5 |
| Maximum Cable Diameter (mm) | 12.7 |
| Minimum Cable Diameter (In.) | 0.17 |
| Minimum Cable Diameter (mm) | 4.3 |
| Roll Length (ft.) | 6 |
| Roll Length (m) | 1.83 |
| Label Height (In.) | 0.84 |
| Label Height (mm) | 21.3 |
| Overall Width (In.) | 0.84 |
| Overall Width (mm) | 21.3 |
| Label Application | Cable & Wire Marking |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| UPC | 07498366374 |
Panduit - H000X084H2C - Package Information
| UPC | 07498366374 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0640 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6403 |
