Description
Description

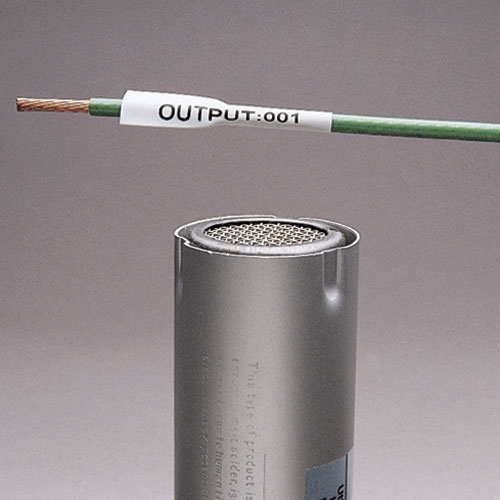

The thermal transfer military grade heat-shrink label in black is single sided with a 1/8" (3.175mm) diameter and made of 3:1 flattened polyolefin. It is .5" (12.7mm) wide and .25" (6.4mm) high. The heat-shrink sleeve is designed to provide a clear, re liable, and durable way to identify wires and cables. The sleeve has 4 label(s) per row and 2000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label prod uction in all label formats, including thermal transfer and dot matrix printable.
Panduit Pan-Code Heat Shrink Label, Single-Sided Thermal Transfer, 1/4 in Length, 1/2 in Width, 22 to 18 AWG Wire, Black Marker, Polyolefin, -67 to 275 deg F
Our military-grade thermal transfer heat shrink label delivers superior durability and reliability for critical wire and cable identification in extreme conditions while maintaining compliance.
Panduit - H050X025H3T - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Permanent, one piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Tested for use as an identification marker in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon or white resin ribbon
- Durable flattened polyolefin, high quality heat shrink wire or cable labels
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- 3:1 shrink ratio
- Made of flattened military grade polyolefin
Specifications
Specifications
Panduit - H050X025H3T - Specifications
| Type | Labels |
|---|---|
| UNSPSC Code | 55120000 |
| Label Dimensions (In.) | 0.5W x 0.25H |
| Product Type | Heat Shrink Label |
| Color | Black |
| Compatible Wire Gauge (AWG) | 18 |
| Diameter (In.) | 0.13 |
| Diameter (mm) | 3.3 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels per Row | 4 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Length (In.) | 0 |
| Overall Length (mm) | 0 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Overall Height (In.) | 0.25 |
| Overall Height (mm) | 6.4 |
| Resistance Properties | Military Grade |
| UPC | 07498301470 |
Panduit - H050X025H3T - Package Information
| UPC | 07498301470 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.1228 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
