Panduit H075X044H1T | Military-Grade Thermal Transfer Heat Shrink L...
Description
Description

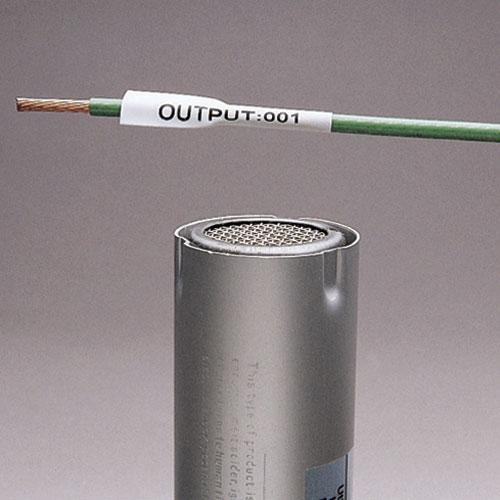

The H075X044H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.75" x 0.44" (19 mm x 11.2 mm). Color White. 1000 labels per roll.
Panduit is a global leader in reliable and innovative solutions for identification and safety. Products are engineered for a wide variety of industries and applications -including electrical, electronics, industrial and network. Panduit offers a complete, leading edge line of labeling software, high performance label materials (all RoHS compliant) and printers that provide enhanced productivity, dependability and value to all infrastructure labeling requirements.
Panduit Pan-Code Heat Shrink Label, 1-Side Military Grade Thermal Transfer, 0.44 in Length, 3/4 in Width, 16 to 10 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Our military-grade thermal transfer heat shrink label delivers superior durability and reliability for critical wire and cable identification in extreme conditions while maintaining compliance.
Panduit - H075X044H1T - Features
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in white is 1-side with a 1/4 in (6.35 mm) dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
Specifications
Specifications
Panduit - H075X044H1T - Specifications
| Type | Labels |
|---|---|
| UNSPSC Code | 55120000 |
| Label Dimensions (In.) | 0.75W x 0.44H |
| Product Type | Heat Shrink Label |
| Color | White |
| Compatible Wire Gauge (AWG) | 16-10 |
| Diameter (In.) | 0.25 |
| Diameter (mm) | 6.4 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 1000 |
| Number of Labels per Row | 2 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
| UPC | 07498351863 |
Panduit - H075X044H1T - Package Information
| UPC | 07498351863 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.1228 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
