Panduit H1.5X2BL6 Slotted Hinged Duct, PVC, 1.5";X2";X6’;...
Description
Description

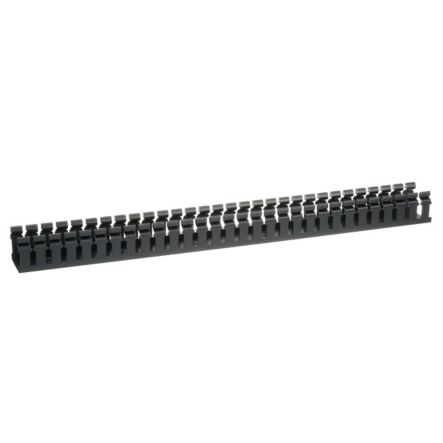

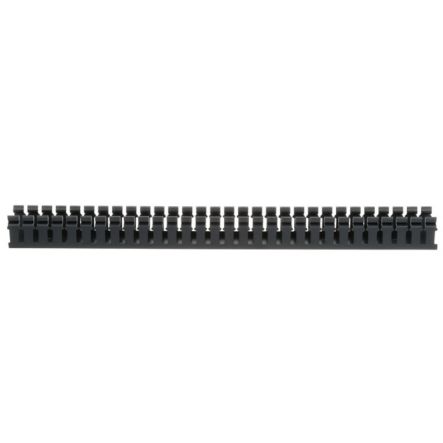

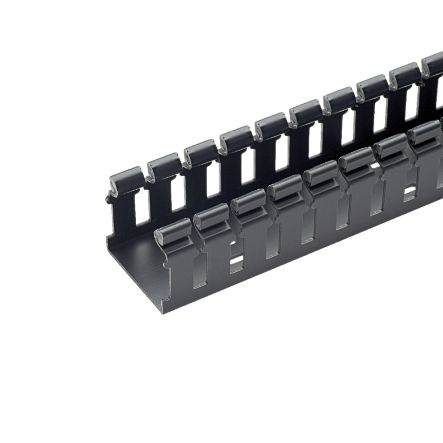

The H1.5X2BL6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-Free PVC. 1.98" x 1.75" (50.3mm x 44.5mm) and 6' (1.83m) long. Cover sold separately. Color Black. 6 per package.
Panduit - H1.5X2BL6 - Features
- Specifications
- Made of lead-free PVC
- Rated for continuous use temperatures up to 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for the flame retardant material
- Available in Black, Light Gray and White
- Provided with standard mounting holes
Specifications
Specifications
Panduit - H1.5X2BL6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - H1.5X2BL6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H1.5X2BL6 |
| Item Description | Panduct H1.5X2BL6 Hinged Cover Wide Slot Duct, Black, PVC, 1.98"x1.75", PK6 |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Product Type | Base Wiring Duct |
| Color | Black |
| Cover Part Number | HC1.5LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Wiring Duct Style | Hinged Cover Wide Slot Wiring Duct |
| Wiring Duct Type | H |
| Overall Height (In.) | 1.98 |
| Overall Height (mm) | 50.3 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - H1.5X2BL6 - Package Information
| UPC | 07498314262 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1095 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 2.1895 |
Panduit - H1.5X2BL6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
