Brand: Panduit
|
SKU:
314551

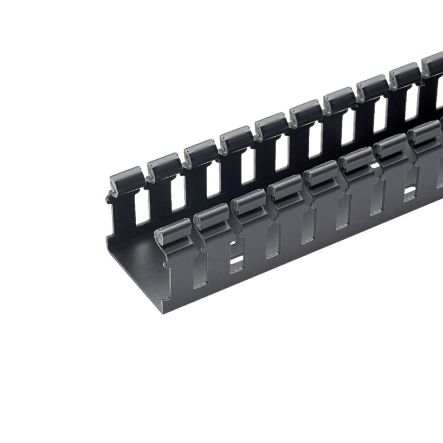

Panduit H1.5X3BL6 Slotted Hinged Duct, PVC, 1.5";X3";X 6 FT. Long, Black, Base and Covers Sold Separately
Regular price
$84.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H1.5X3BL6 Slotted Hinged Duct, PVC, 1.5";X3";X 6 ...
Regular price
$84.86
Unit price
Description
Description
Panduit H1.5X3BL6 | Panduct H1.5X3BL6 Base Wiring Duct

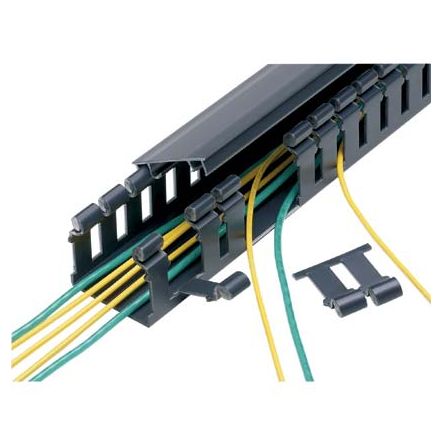

Panduct type H hinged cover wide slot wiring duct, 1.5 W x 3 H, 6' length, PVC, black.
Panduit - H1.5X3BL6 - Features
- Specifications
- Made of lead-free PVC
- Rated for continuous use temperatures up to 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for the flame retardant material
- Available in Black, Light Gray and White
- Provided with standard mounting holes
Specifications
Specifications
Panduit - H1.5X3BL6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - H1.5X3BL6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H1.5X3BL6 |
| Item Description | Panduct H1.5X3BL6 Base Wiring Duct |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Product Type | Base Wiring Duct |
| Color | Black |
| Cover Part Number | HC1.5BL6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | H |
| Overall Height (In.) | 3.06 |
| Overall Height (mm) | 77.7 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - H1.5X3BL6 - Package Information
| UPC | 07498314346 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1573 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 3.1467 |
