Panduit H100X034H2C | P1 Military-Grade Polyolefin Die-Cut Heat-Shr...
Description
Description

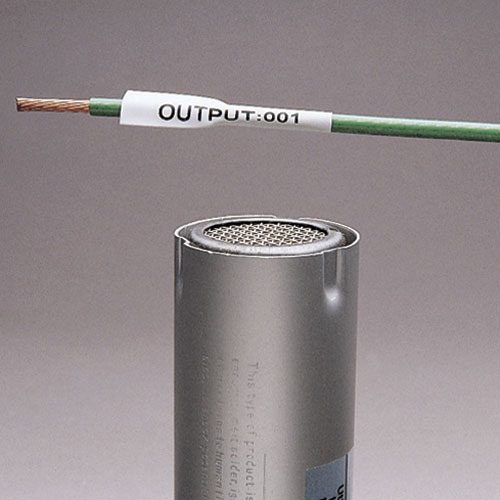

The portable printer die-cut heat shrink labels in yellow are made of military-grade polyolefin. They measure 0.19" (4.6mm) diameter, 1" (25.4mm) length, and 0.34" (8.6mm) width and have a wire range of 18"12 AWG. The fast-loading P1 label cassette inc ludes both label material and ribbon for easy label changing. There are 100 labels per cassette.
Panduit P1 Heat Shrink Label Cassette, Die-Cut Military Grade, 1 in Length, 0.34 in Width, 18 to 12 AWG Wire, Yellow Marker, Polyolefin, -67 to 275 deg F
Protect and identify your wires with our military-grade polyolefin die-cut heat-shrink label cassette, offering reliable protection and clear identification in demanding environments.
Panduit - H100X034H2C - Features
- P1 Label Cassette contains an integrated memory device for automatic formatting, recall of last legend used, and number of labels remaining in the cassette
- Fast loading label cassette includes both label material and ribbon to make changing labels easy
- Each cassette contains a roll of die-cut non-adhesive flattened polyolefin
- Shrink ratio 3:1
- Use with PanTher LS8E or Cougar LS9 hand-held thermal transfer printers
- There are 100 labels per cassette
Specifications
Specifications
Panduit - H100X034H2C - Specifications
| Type | Labels |
|---|---|
| UNSPSC Code | 55120000 |
| Note | For use with LS8E and LS8EQ printers |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 18-12 |
| Material | Polyolefin |
| Number of Labels | 100 |
| Resistance Properties | Military Grade |
| Standards Met | MIL-M-81531 and MIL-STD-202G Method 215K, Solution A, C, and D. UL Standard 224 for flammability. |
| Sub Brand | P1™ |
| Maximum Cable Diameter (In.) | 0.19 |
| Maximum Cable Diameter (mm) | 4.8 |
| Minimum Cable Diameter (In.) | 0.06 |
| Minimum Cable Diameter (mm) | 1.5 |
| Label Width (In.) | 1 |
| Label Width (mm) | 25.4 |
| Label Height (In.) | 0.34 |
| Label Height (mm) | 8.6 |
| Overall Width (In.) | 0.34 |
| Overall Width (mm) | 8.6 |
| Label Application | Cable & Wire Marking |
| Minimum Operating Temperature (°C) | -55 |
| UPC | 07498301015 |
Panduit - H100X034H2C - Package Information
| UPC | 07498301015 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0627 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.6271 |
