Panduit H100X034H2T-2-B | Pan-Code Heat Shrink Label
Description
Description
Our military-grade, two-sided label meets stringent military and industry standards, and allows for more comprehensive and detailed information with the double printing space.
The thermal transfer military grade heat-shrink label in yellow is 2-sided with a 3/16" (4.76mm) diameter and made of 3:1 flattened polyolefin. It is 1" (25.4mm) wide and .34" (8.6mm) high. The heat-shrink sleeve is designed to provide a clear, reliabl e, and durable way to identify wires and cables. The sleeve has 2 label(s) per row and 5000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label productio n in all label formats, including thermal transfer and dot matrix printable.
Panduit Pan-Code Heat Shrink Label, Double Sided Thermal Transfer, 0.34 in Length, 1 in W, 18 to 12 AWG Wire, Yellow Marker, Polyolefin, -67 to 275 deg F
Panduit - H100X034H2T-2-B - Features
- Permanent, 1-piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Can be printed on both sides for improved visibility
- Tested as an identification marker for use in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon

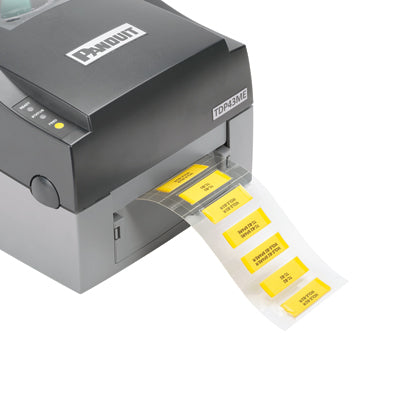

- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- 3:1 shrink ratio
- Made of flattened military grade polyolefin
Specifications
Specifications
Panduit - H100X034H2T-2-B - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H100X034H2T-2-B |
| Type | Labels |
| UNSPSC Code | 55120000 |
| Label Dimensions (In.) | 1W x 0.34H |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 18 |
| Diameter (In.) | 0.19 |
| Diameter (mm) | 4.7 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels per Row | 2 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Length (In.) | 0 |
| Overall Length (mm) | 0 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.34 |
| Overall Height (mm) | 8.6 |
| Resistance Properties | Military Grade |
| UPC | 07498319497 |
