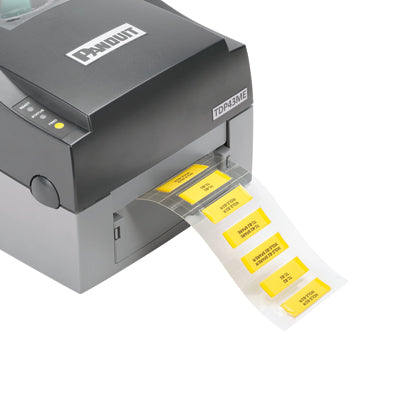

Panduit H100X034HGT-2 | Halogen-Free Two-Sided Heat Shrink Label
Description
Description
The H100X034HGT-2 Thermal Transfer Halogen-Free Heat-Shrink Label is 2-sided and made of flame retardant, low smoke cross-linked polyolefin. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability. Polyolefin. 1" x 0.34" (25.4 mm x 8.6 mm). 0.19" (4.76 mm) diameter. Color Yellow. 1000 per roll.
Panduit Heat Shrink Label, 2-Sided Thermal Transfer, 3.34 in Length, 1 in Width, 18 to 12 AWG Wire, Yellow Marker, Polyolefin, -22 to 221 deg F
Upgrade your labeling with our halogen-free two-sided heat shrink label. Its durability is perfect for harsh environments.
Panduit - H100X034HGT-2 - Features
- Permanent, 1-piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Can be printed on both sides for improved visibility
- Use thermal transfer hybrid ribbon
- Made of flame-retardant, low smoke cross linked polyolefin
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- 2:1 shrink ratio
- Made low smoke halogen-free cross linked polyolefin
Specifications
Specifications
Panduit - H100X034HGT-2 - Specifications
| Type | Labels |
|---|---|
| UNSPSC Code | 55120000 |
| Label Dimensions (In.) | 1W x 0.34H |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 18-12 |
| Diameter (In.) | 0.19 |
| Diameter (mm) | 4.8 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 1000 |
| Number of Labels per Row | 2 |
| Number of Sides | 2 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -30 |
| Minimum Operating Temperature (°F) | -22 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.34 |
| Overall Height (mm) | 8.6 |
| Standards Met | Satisfies BS6853; 1999 Vehicle Category 1A. Meets SAE-AS5942, MIL-STD-883F Method 2015.13, MIL-STD-202G Method 215K. RoHS Compliant. |
| Label Application | Cable & Wire Marking |
| UPC | 07498341067 |
Panduit - H100X034HGT-2 - Package Information
| UPC | 07498341067 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.1239 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
