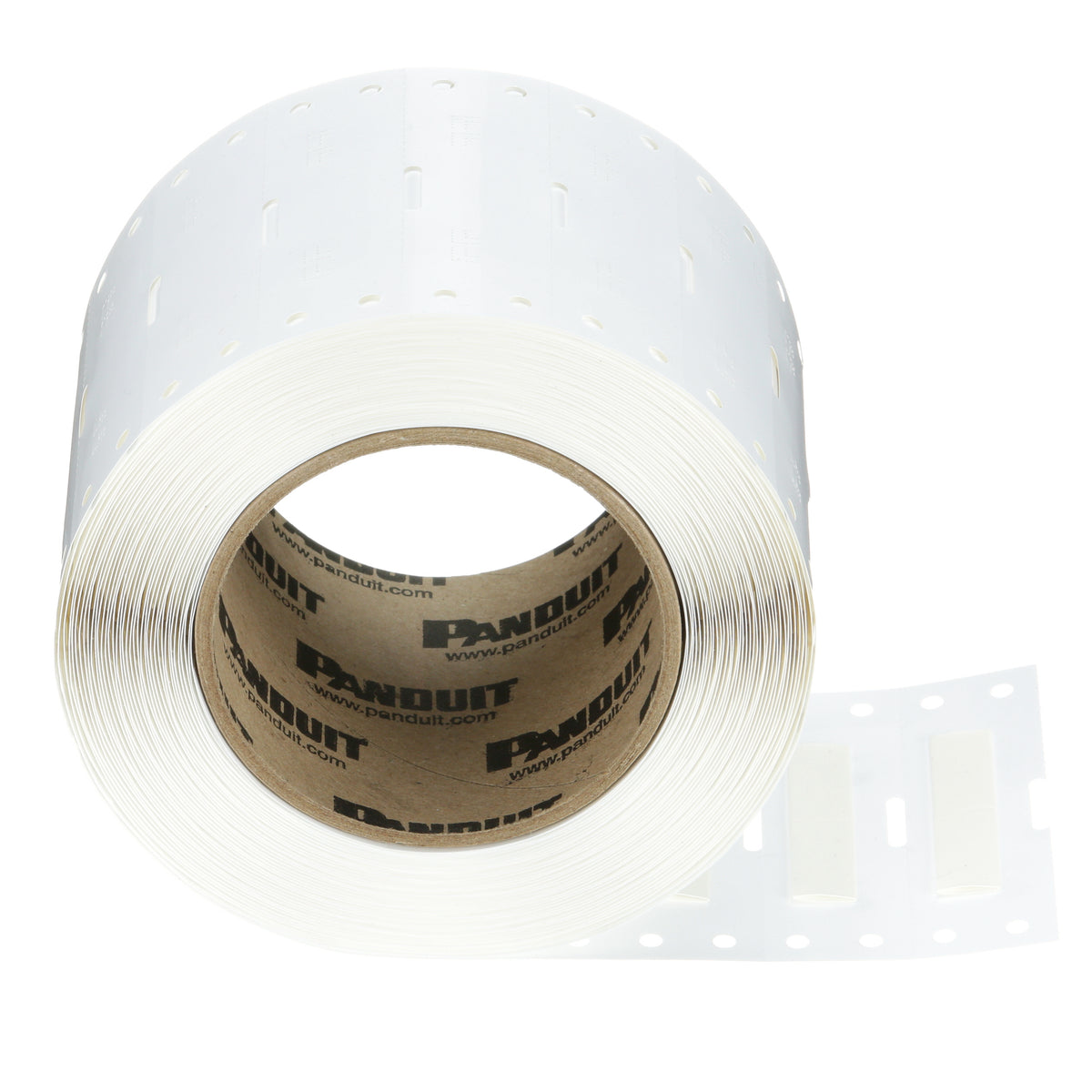

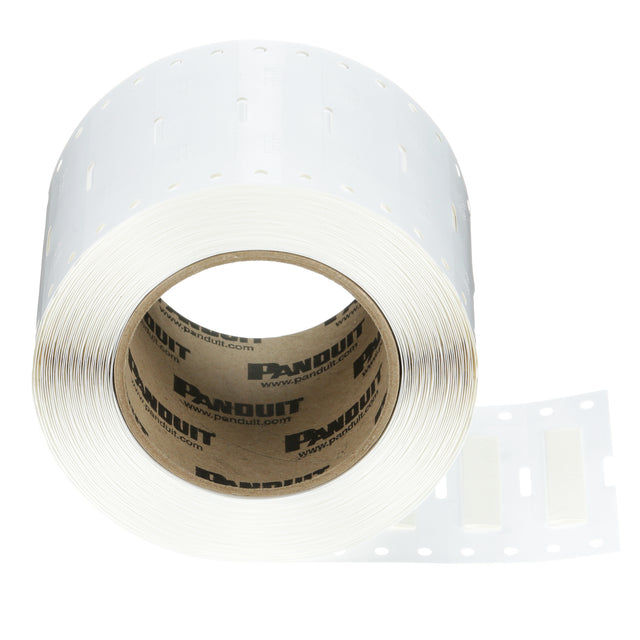

Panduit H100X044H1T | Heatshrink, PO, White, Mil Grade, 1000 Lbls, TT, 0.44"x1"
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H100X044H1T | Heatshrink, PO, White, Mil Grade, 1000 Lbls, ...
Description
Description
Our military-grade thermal transfer heat shrink label delivers superior durability and reliability for critical wire and cable identification in extreme conditions while maintaining compliance.
White, 1/4" diameter polyolefin, 1000/roll.
Panduit is a global leader in reliable and innovative solutions for identification and safety. Products are engineered for a wide variety of industries and applications -including electrical, electronics, industrial and network. Panduit offers a complete, leading edge line of labeling software, high performance label materials (all RoHS compliant) and printers that provide enhanced productivity, dependability and value to all infrastructure labeling requirements.
Panduit Pan-Code Heat Shrink Label, 1-Side Military Grade Thermal Transfer, 0.44 in Length, 1 in Width, 16 to 10 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Panduit - H100X044H1T - Features
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in white is 1-side with a 1/4 in (6.35 mm) dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- Labels offer crisp, clear legends with superior legibility
- Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3)
- Will meet MIL-M-81531, MIL-STD202F, and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- Shrink ratio 3:1
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- PANDUIT labeling software packages include all label formats for quick and easy label production
Specifications
Specifications
Panduit - H100X044H1T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H100X044H1T |
| UNSPSC Code | 55120000 |
| Label Dimensions (In.) | 1W x 0.44H |
| Product Type | Heat Shrink Label |
| Color | White |
| Compatible Wire Gauge (AWG) | 16-10 |
| Diameter (In.) | 0.25 |
| Diameter (mm) | 6.4 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 1000 |
| Number of Labels per Row | 2 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
| UPC | 07498352256 |
Panduit - H100X044H1T - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Documents and Downloads
Documents and Downloads
- Panduit H100X044H1T Specification Sheet
- Panduit H100X044H1T Part Drawings
- Panduit H100X044H1T Application Guides
- Panduit H100X044H1T Line Cards
- Panduit H100X044H1T Line Cards
- Panduit H100X044H1T Line Cards
- Panduit H100X044H1T Line Cards
- Panduit H100X044H1T Application Guides
- Panduit H100X044H1T RoHS Statement
