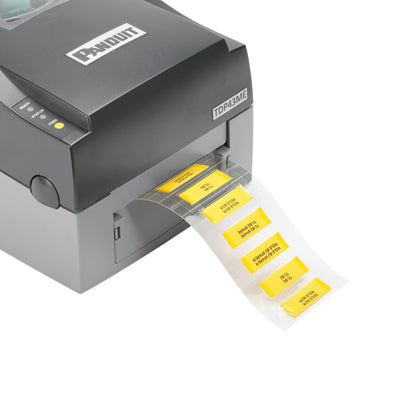

Panduit H100X044HST-2 | Pan-Code Heat Shrink Label
Description
Description
The thermal transfer fluid resistant heat-shrink label in yellowis 2-sided with a 1/4" (6.35mm) diameter and made of cross-linked polyolefin. It is 1" (25.4mm) wide and .44" (11.2mm) high. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The sleeve has 2 label(s) per row and 1000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable.
Panduit Pan-Code Heat Shrink Label, Double Sided Fluid Resistant Thermal Transfer, 0.44 in Length, 1 in W, 16 to 10 AWG Wire, Yellow Marker, Polyolefin, -67 to 275 deg F
Panduit - H100X044HST-2 - Features
- Permanent, 1-piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Cross linked, semi-rigid, fluid-resistant, shrinkable polyolefin material
- Can be printed on both sides for improved visibility
- Use thermal transfer RMER4BL-C resin ribbon
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- 3:1 shrink ratio
- Made of cross linked polyolefin
Specifications
Specifications
Panduit - H100X044HST-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H100X044HST-2 |
| Type | Labels |
| UNSPSC Code | 55120000 |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 18 |
| Diameter (In.) | 0.25 |
| Diameter (mm) | 6.4 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels per Row | 2 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Length (In.) | 0 |
| Overall Length (mm) | 0 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Standards Met | (1) Material is RoHS compliant (European Union directive 2002/95/EC) (2) Meets the material and physical property requirements AMS-DTL-23053/6 Class 1 and NF F00-608 Class A & H when printed using RMER4BL-C thermal transfer ribbon. (3) Meet SAE-AS5942, MIL-STD-883F Method 2015.13, and MIL-STD-202G Method 215K (4) RoHS Compliant |
| Sub Brand | Pan-Code |
| UPC | 07498357435 |
