Panduit H100X084H2T-2-B | Heat-Shrink Label | UPC - 07498329143

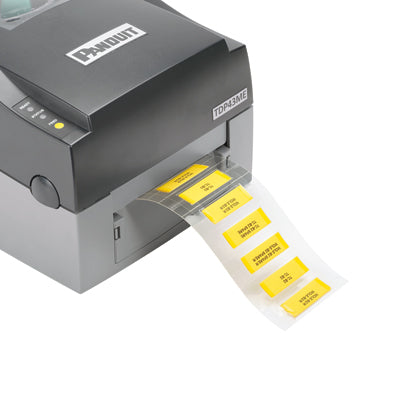

The thermal transfer military grade heat-shrink label in yellow is 2-sided with a 1/2" (12.7mm) diameter and made of 3:1 flattened polyolefin. It is 1" (25.4mm) wide and .84" (21.3mm) high. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. The sleeve has 2 label(s) per row and 5000 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable.

---

Panduit Panduit H100X084H2T-2-B | Heat-Shrink Label | UPC - 07498329143 Key Specs

Product Type	Heat-Shrink Label
Color	Yellow
Compatible Wire Gauge (AWG)	18
Diameter (In.)	0.5
Diameter (mm)	12.7
Material	Polyolefin
Flammability Rating	VW-1
Number of Labels	5000
Number of Labels per Row	2
Number of Sides	1
Maximum Operating Temperature (°C)	135
Maximum Operating Temperature (°F)	275
Minimum Operating Temperature (°C)	-55
Minimum Operating Temperature (°F)	-67
Overall Height (In.)	0.84
Overall Height (mm)	21.3
Overall Length (In.)	0
Overall Length (mm)	0
Overall Width (In.)	1
Overall Width (mm)	25.4
