Panduit H100X122H1T-2 | Heat-Shrink Label | UPC - 07498320723
Description
Description
Panduit is a global leader in reliable and innovative solutions for identification and safety. Products are engineered for a wide variety of industries and applications -including electrical, electronics, industrial and network. Panduit offers a complete, leading edge line of labeling software, high performance label materials (all RoHS compliant) and printers that provide enhanced productivity, dependability and value to all infrastructure labeling requirements.
Panduit Pan-Code Heat Shrink Label, 2-Sided Military Grade Thermal Transfer, 1.22 in Length, 1 in Width, 8 to 4/0 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Features + Benefits
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in white is 2-side with a 3/4 in (19 mm) dia and made of 3:1 flattened polyolefin

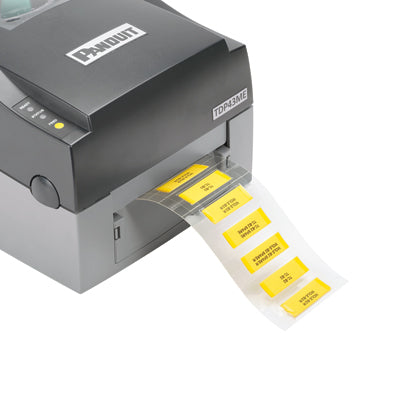

- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
Panduit H100X122H1T-2 Key Specs
| Product Type | Heat-Shrink Label |
| Color | White |
| Compatible Wire Gauge (AWG) | 8-4/0 |
| Diameter (In.) | 0.75 |
| Diameter (mm) | 19 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 500 |
| Number of Labels per Row | 2 |
| Number of Sides | 2 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Height (In.) | 1.22 |
| Overall Height (mm) | 31 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
Panduit H100X122H1T-2 Data Sheets
| Cross References | Terminal Military Cross Reference | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #16-14 Barrel Nylon Insulated, Funneled Wire Entry Ring Tongue, .162 [4.11] Max. Wire Insulation Diameter Part Drawing A41276 | Download and View |
