Panduit H200X034H1T | Heat-Shrink Label | UPC - 07498352560
Description
Description
Panduit is a global leader in reliable and innovative solutions for identification and safety. Products are engineered for a wide variety of industries and applications -including electrical, electronics, industrial and network. Panduit offers a complete, leading edge line of labeling software, high performance label materials (all RoHS compliant) and printers that provide enhanced productivity, dependability and value to all infrastructure labeling requirements.

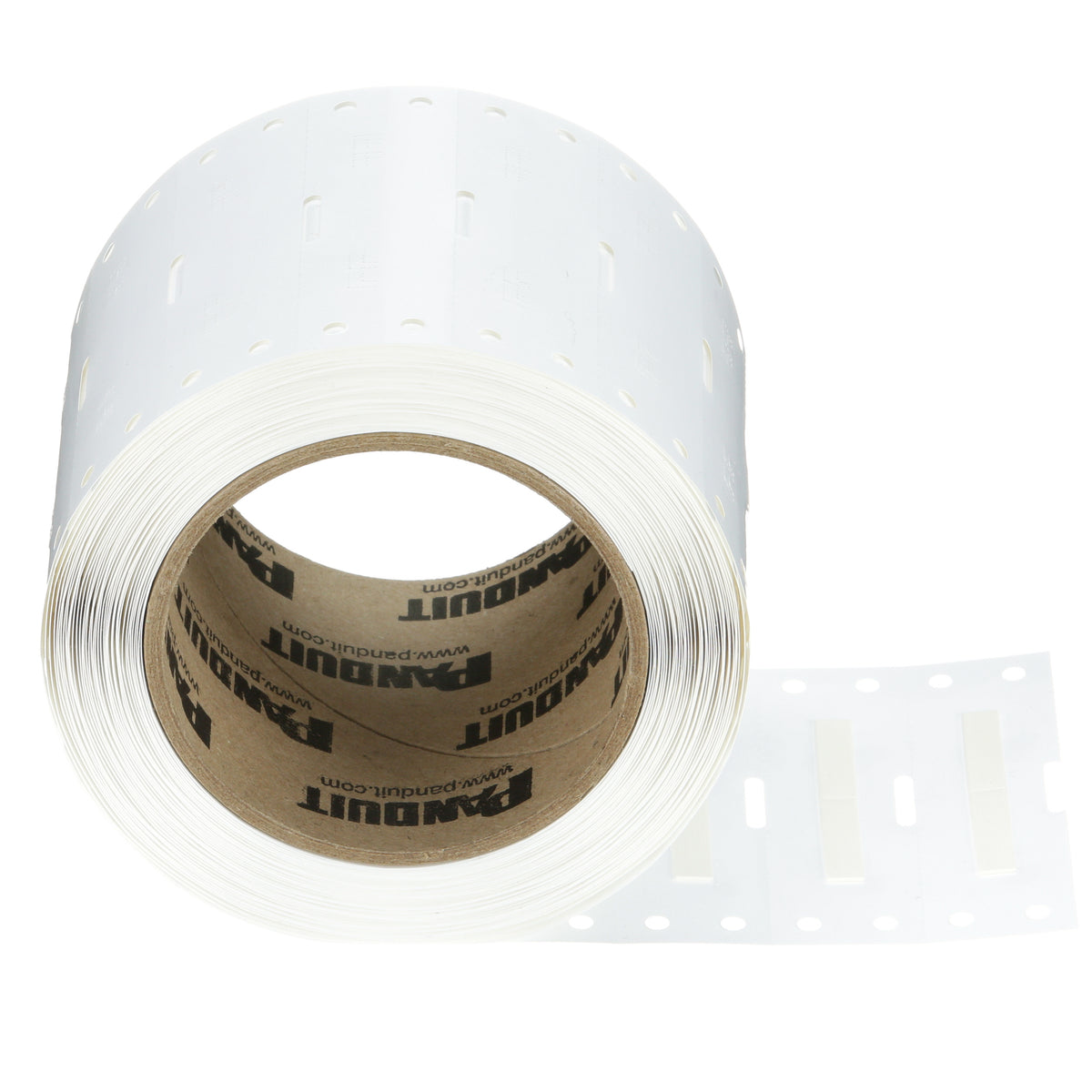

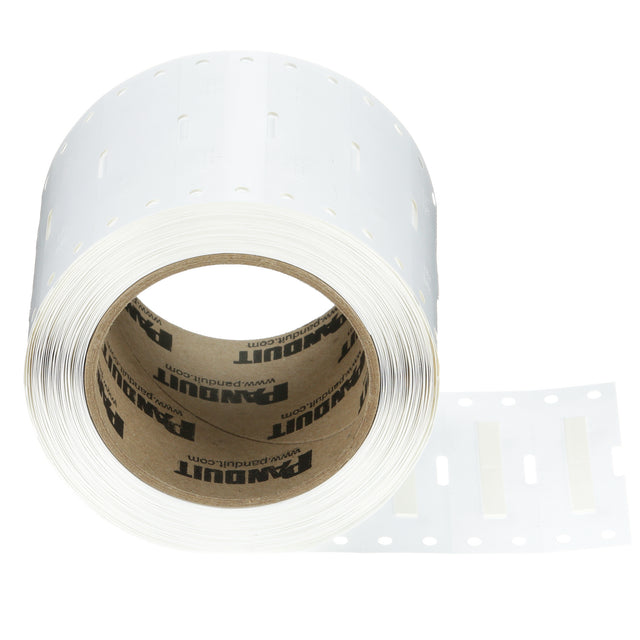

Panduit Pan-Code Heat Shrink Label, 1-Side Military Grade Thermal Transfer, 0.34 in Length, 2 in Width, 18 to 12 AWG Wire, White Marker, Polyolefin, -67 to 275 deg F
Features + Benefits
- The heat shrink sleeve is designed to provide a clear, reliable and durable way to identify wires and cables
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade printable heat shrink label in white is 1-side with a 3/16 in (4.8 mm) dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
Panduit H200X034H1T | Heat-Shrink Label | UPC - 07498352560 Key Specs
| Product Type | Heat-Shrink Label |
| Color | White |
| Compatible Wire Gauge (AWG) | 18-12 |
| Diameter (In.) | 0.19 |
| Diameter (mm) | 4.8 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 500 |
| Number of Labels per Row | 1 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Height (In.) | 0.34 |
| Overall Height (mm) | 8.6 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
Panduit H200X034H1T | Heat-Shrink Label | UPC - 07498352560 Data Sheets
| Part Drawings | Mil Grade Heat Shrink Part Drawing | Download and View |
| Application Guides | Identification Solutions for Harsh Environments: D-IDAG01--WW-ENG | Download and View |
| Line Cards | Thermal Transfer Labels DEU | Download and View |
Panduit H200X034H1T | Heat-Shrink Label | UPC - 07498352560 Environmental Information
| Panduit's RoHS Statement | Download and View |
