Brand: Panduit
|
SKU:
9787922
Panduit H200X034H4T | Heat-Shrink Label | UPC - 07498308093
Regular price
$503.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H200X034H4T | Heat-Shrink Label | UPC - 07498308093
Regular price
$503.50
Unit price
Description
Description

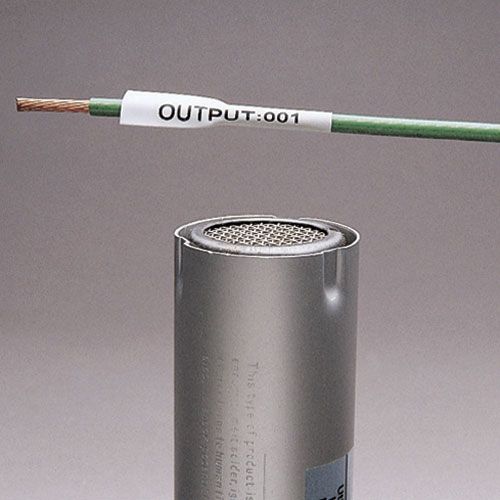

Panduit Pan-Code Heat Shrink Label, Single-Sided Thermal Transfer, 0.34 in Length, 2 in Width, 18 to 12 AWG Wire, Red Marker, Polyolefin, -67 to 275 deg F
Features + Benefits
- Permanent, one piece, heat shrink sleeve designed to provide clear, durable identification of wires and cables
- Tested for use as an identification marker in (Class 1E) harsh environments
- Use thermal transfer hybrid ribbon or white resin ribbon
- Durable flattened polyolefin, high quality heat shrink wire or cable labels
- Heat shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label production in all label formats, including thermal transfer and dot matrix printable
- 3:1 shrink ratio
- Made of flattened military grade polyolefin
Panduit H200X034H4T Key Specs
| Product Type | Heat-Shrink Label |
| Color | Red |
| Compatible Wire Gauge (AWG) | 18 |
| Diameter (In.) | 0.19 |
| Diameter (mm) | 4.7 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 500 |
| Number of Labels per Row | 1 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Height (In.) | 0.34 |
| Overall Height (mm) | 8.6 |
| Overall Length (In.) | 0 |
| Overall Length (mm) | 0 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Resistance Properties | Military Grade |
| Standards Met | (1) Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3) (2) Will meet MIL-M-81531, MIL-STD202F, and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons (3) RoHS Compliant |
| Sub Brand | Pan-Code |
Panduit H200X034H4T Data Sheets
| Catalog Cut Sheets | Mil Grade Heat Shrink Catalog Page | Download and View |
| Part Drawings | Mil Grade Heat Shrink Part Drawing | Download and View |
| Application Guides | Identification Solutions for Harsh Environments: D-IDAG01--WW-ENG | Download and View |
| Line Cards | Thermal Transfer Labels DEU | Download and View |
| Line Cards | Thermal Transfer Labels FRA | Download and View |
| Line Cards | Thermal Transfer Labels ITA | Download and View |
| Line Cards | Thermal Transfer Labels Line Card: IDLC08--SA | Download and View |
