Brand: Panduit
|
SKU:
PAN-H200X044H1T
Panduit H200X044H1T | H200X044H1T Heatshrink, Po, White, Mil Grade, 500 Lbls, Tt, 0.44"X2"
Regular price
$582.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H200X044H1T | H200X044H1T Heatshrink, Po, White, Mil Grade,...
Regular price
$582.34
Unit price
Brand: Panduit
|
SKU:
PAN-H200X044H1T
Regular price
$582.34
Unit price
Shipping calculated at checkout.
Description
Description

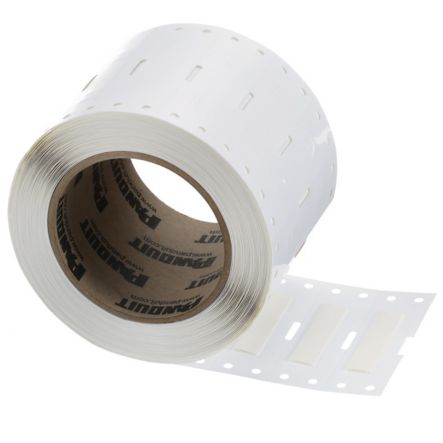

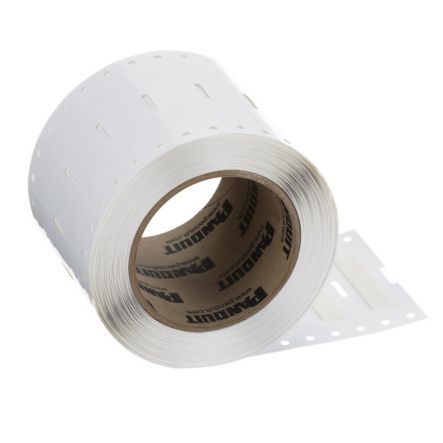

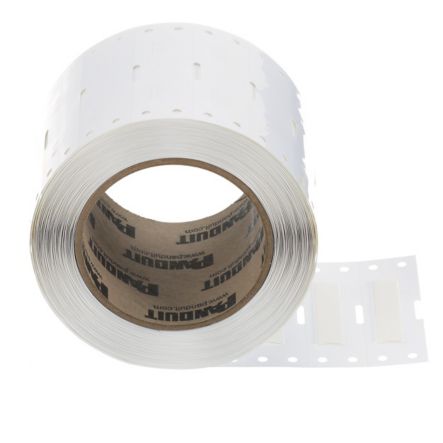

Panduit H200X044H1T | H200X044H1T Heatshrink, Po, White, Mil Grade, 500 Lbls, Tt, 0.44"X2"
The H200X044H1T Military-Grade Polyolefin Heat-Shrink Label is single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Shrink ratio 3:1. 0.44" x 2" (11.2 mm x 50.8 mm). Color White. 500 labels per roll.
Panduit - H200X044H1T - Features
- White, 1/4"; diameter polyolefin, 500/roll.
- Labels offer crisp, clear legends with superior legibility
- Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3)
- Will meet MIL-M-81531, MIL-STD202F, and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- Shrink ratio 3:1
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- PANDUIT labeling software packages include all label formats for quick and easy label production
Specifications
Specifications
Panduit - H200X044H1T - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - H200X044H1T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H200X044H1T |
| Item Description | H200X044H1T Heatshrink, Po, White, Mil Grade, 500 Lbls, Tt, 0.44"X2" |
| Product Type | Heat Shrink Label |
| Color | White |
| Compatible Wire Gauge (AWG) | 16-10 |
| Diameter (In.) | 0.25 |
| Diameter (mm) | 6.4 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 500 |
| Number of Labels per Row | 1 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Height (In.) | 0.44 |
| Overall Height (mm) | 11.2 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Resistance Properties | Military Grade |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability, Fluid Resistance, Harsh Environments, Military Grade |
| Printer Type | Thermal Transfer |
Panduit - H200X044H1T - Package Information
| UPC | 07498352607 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1239 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
