Panduit H200X165H2T | Heat Shrink Label
Description
Description
Our military-grade thermal transfer heat shrink label delivers superior durability and reliability for critical wire and cable identification in extreme conditions while maintaining compliance.

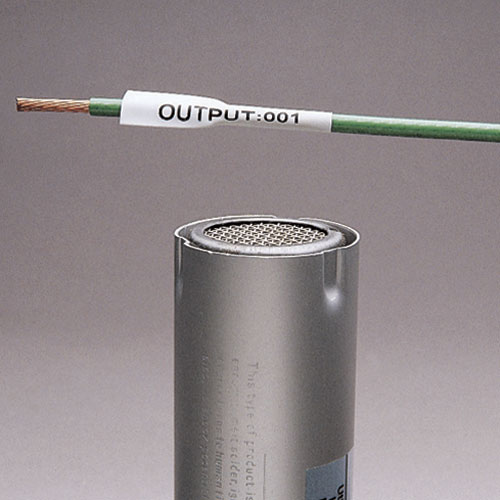

The thermal transfer military grade heat-shrink label in yellow is one-sided with a 1.0" (25.4 mm) diameter and made of 3:1 flattened polyolefin. It is 2.0" wide and 1.65" high (50.8 x 41.9 mm). The heat-shrink sleeve is designed to provide a clear, re liable, and durable way to identify wires and cables. The sleeve has 1 label per row and 250 labels per roll. Heat-shrink labels are mounted on a plastic carrier and offer crisp, clear legends with superior readability for quick and easy label producti on in all label formats, including thermal transfer and dot matrix printable.
Panduit is a global leader in reliable and innovative solutions for identification and safety. Products are engineered for a wide variety of industries and applications -including electrical, electronics, industrial and network. Panduit offers a complete, leading edge line of labeling software, high performance label materials (all RoHS compliant) and printers that provide enhanced productivity, dependability and value to all infrastructure labeling requirements.
Panduit Pan-Code Heat Shrink Label, 1-Side Military Grade Thermal Transfer, 1.65 in Length, 2 in Width, 4 AWG to 500 kcmil Wire, Yellow Marker, Polyolefin, -67 to 275 deg F
Panduit - H200X165H2T - Features
- Labels offer crisp, clear legends with superior legibility
- Will meet MIL-M-81531, MIL-STD202F and MIL-STD-883E when printed with RMH4BL or RHH4BL-S ribbons
- The thermal transfer military grade heat shrink label in yellow is 1-side with a 1.0 in (25.4 mm) dia and made of 3:1 flattened polyolefin
- Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier
- Panduit labeling software packages include all label formats for quick and easy label production
Specifications
Specifications
Panduit - H200X165H2T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H200X165H2T |
| Type | Labels |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers |
| Label Dimensions (In.) | 2W x 1.65H |
| Product Type | Heat Shrink Label |
| Color | Yellow |
| Compatible Wire Gauge (AWG) | 4-500 MCM |
| Diameter (In.) | 1 |
| Diameter (mm) | 25.4 |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Number of Labels | 250 |
| Number of Labels per Row | 1 |
| Number of Sides | 1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Overall Height (In.) | 1.65 |
| Overall Height (mm) | 41.9 |
| Resistance Properties | Military Grade |
| UPC | 07498352678 |
