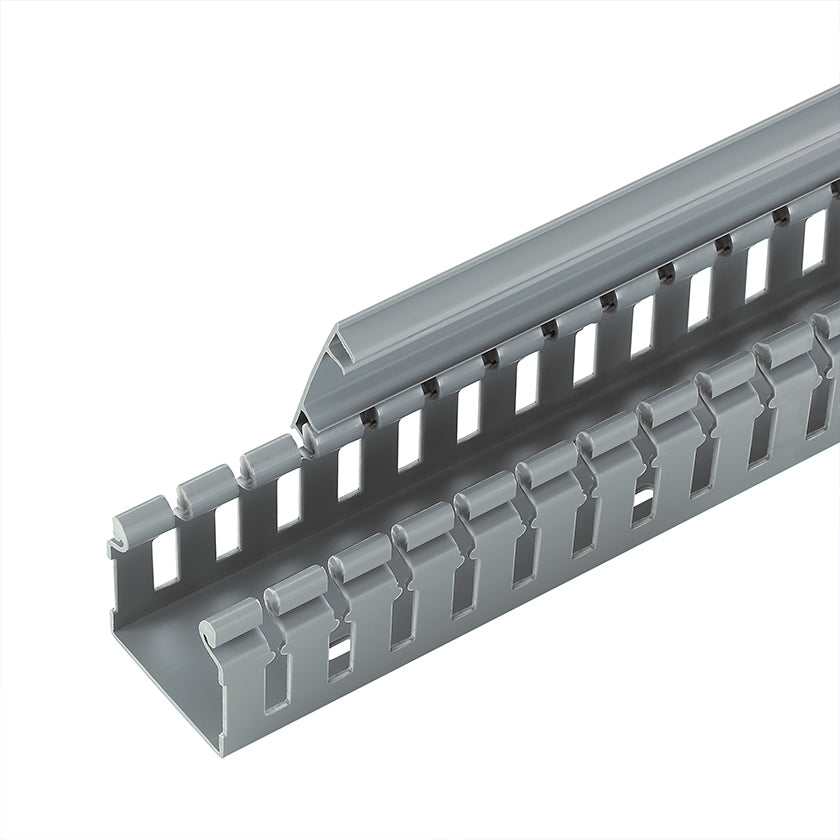

Panduit H2X2LG6 | Hinged Cover Wide Slot Duct, Lt Gray, PVC, 2"...
Description
Description
Our Type H wide slot wiring duct with hinged cover simplifies wire access and management in control panels, delivering a robust and effective cable organization solution.
Panduct type H hinged cover wide slot wiring duct, 2 W x 2 H, 6’ length, PVC, light gray.
Panduit innovative dual-sided hinged wiring duct delivers improved wire management and aesthetics for electrical control panel and communication applications. The unique push-on hinged cover is easier to install and remove than traditional wiring duct covers and once installed can be opened from either side of the duct. Hinged cover wiring duct provides faster access to wiring, prevents cover loss, reduces maintenance costs and promotes safety.
Panduit Slot Wall Wiring Duct, Type H Hinged Cover, 2.17 in Width, 2 in Depth, 6 ft Length, 0.08 in Thickness, 0.31 in Slot, Surface Mount, Lead-Free PVC, Light Gray
Panduit - H2X2LG6 - Features
- Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes

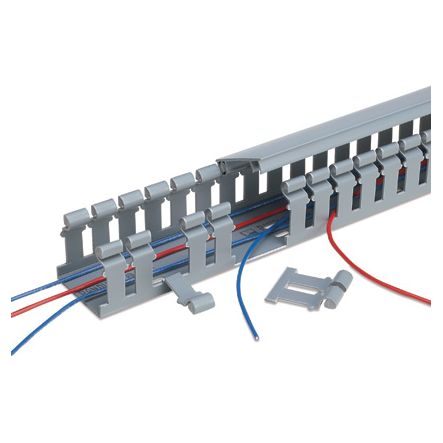

- Upper and lower scorelines allows easy finger and sidewall section removals
- Wide slot/finger design provides excellent wire management in general purpose applications and is compatible with a wide range of wire sizes and component types
- Provided with standard mounting holes
- Specifications
- Wide slot/finger design provides excellent wire management in general purpose applications and is compatible a wide range of wire sizes and component types
- Made of lead-free PVC
- Rated for continuous use temperature: 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material
- Provided with standard mounting holes
- Base and cover length is 6 ft.
Specifications
Specifications
Panduit - H2X2LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H2X2LG6 |
| Components | Slotted Duct Standard |
| Fiber Duct H X W | 2" X 2" |
| Finish | Grey |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 2.17W x 1.98H |
| Product Type | Base Wiring Duct |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Color | Light Gray |
| Cover Part Number | HC2LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Wiring Duct Base |
| Standards Met | UL 94 V-0 Recognized; CSA Certified; CE Compliant; RoHS Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Slotted Wall Wiring Duct |
| Wiring Duct Type | H |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1828.8 |
| Overall Width (In.) | 2.17 |
| Overall Width (mm) | 55.1 |
| Overall Height (In.) | 1.98 |
| Overall Height (mm) | 50.3 |
| Slot Width (In.) | 0.31 |
| UPC | 07498385411 |
