Brand: Panduit
|
SKU:
250218

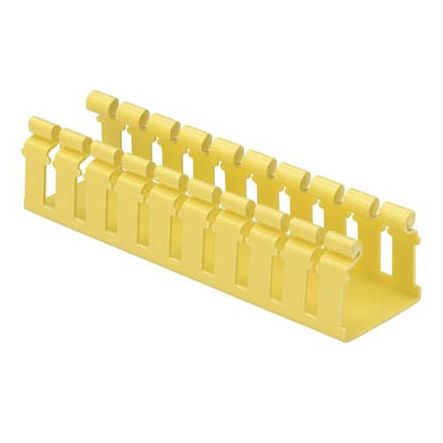

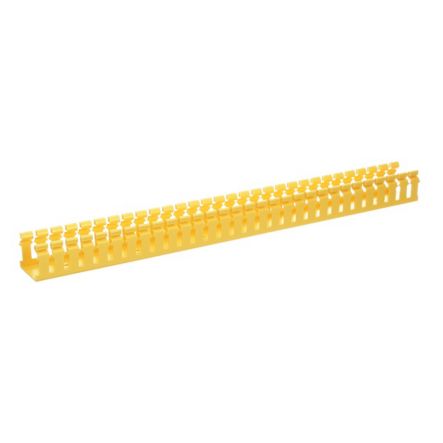

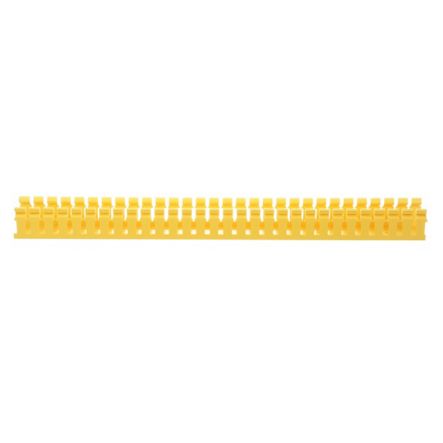

Panduit H2X2YL6 Channel, Hinged, Slotted Wall, 2"; x 2"; (50mm x 50mm), 6 FT., FiberRunner, Yellow
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H2X2YL6 Channel, Hinged, Slotted Wall, 2"; x 2"; ...
Regular price
$66.58
Unit price
Description
Description
Panduit H2X2YL6 | FIBERRUNNER HINGED SLOTTED CHANNEL
Used to carry the cables vertically to the front or the back of equipment racks throughout the system. Accepts hinged cover HC2YL6. Extra supports required when used in horizontal applications. Use QuikLock Coupler FBC2X2YL to attach channel and/or fittings. Base and covers sold separately.
Panduit - H2X2YL6 - Features
- 2x2 system ideal for use with smaller cable counts
- Multiple spillout options provide versatility to mate to various equipment and rack configurations
- QuikLock(TM) couplers reduce system installation time dramatically
- Channel, covers, fittings and other non-metallic system components made from V-0 flame class rated material
- Compatible with all sizes of Panduit(TM) FiberRunner(TM) and Panduit(TM) Fiber-Duct(TM)Routing Systems, cable management, and racks
- 2x2 FiberRunner(TM) Hinged and Slotted Channels can be used with 2x2 Fiber-Duct(TM) fittings and brackets
- Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems (NEBS) Level 3
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
Specifications
Specifications
Panduit - H2X2YL6 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - H2X2YL6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H2X2YL6 |
| Item Description | FIBERRUNNER HINGED SLOTTED CHANNEL |
| Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling |
| Product Type | Channel |
| Channel Material | Rigid PVC |
| Color | Yellow |
| For Use With | HC2YL6,FBC2X2YL |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Overall Height (In.) | 1.92 |
| Overall Height (mm) | 48.8 |
| Sub Brand | FiberRunner |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.17 |
| Overall Width (mm) | 55.1 |
| Standards Met | UL Listed to 2024A,GR-63-CORE,CE Compliant |
| System Dimensions | 2x2 |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - H2X2YL6 - Package Information
| UPC | 07498385412 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1319 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 2.6371 |
Panduit - H2X2YL6 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
| Video 3 | Click to View |
