Brand: Panduit
|
SKU:
10112762
Panduit H2X3WH6 | Panduct H2X3WH6 Base Wiring Duct
Regular price
$87.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H2X3WH6 | Panduct H2X3WH6 Base Wiring Duct
Regular price
$87.01
Unit price
Description
Description
Panduit H2X3WH6 | Panduct H2X3WH6 Base Wiring Duct

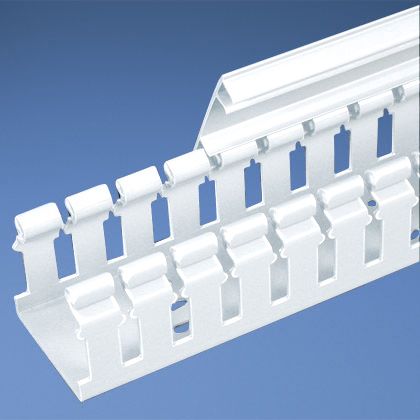

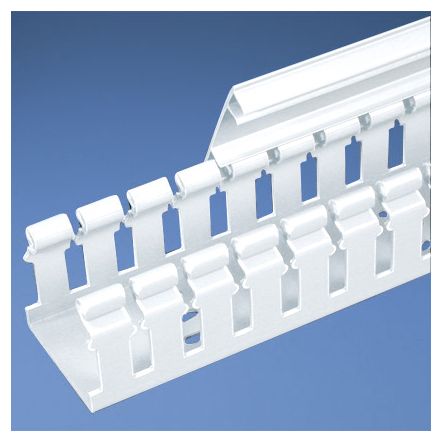

Panduct type H hinged cover wide slot wiring duct, 2 W x 3 H, 6' length, PVC, white.
Panduit H2X3WH6 Type H Hinged Cover Wide Slot wiring Duct 2x3 H, 6'l Pvcwhite
Specifications
Specifications
Panduit - H2X3WH6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - H2X3WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H2X3WH6 |
| Item Description | Panduct H2X3WH6 Base Wiring Duct |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | HC2WH6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | H |
| Overall Height (In.) | 3.06 |
| Overall Height (mm) | 77.7 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.17 |
| Overall Width (mm) | 55.1 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
| Components | SOLID DUCT |
| UNSPSC Code | 39131712 |
Panduit - H2X3WH6 - Package Information
| UPC | 07498313865 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.2020 |
| Standard Ctn. Quantity | 60 |
| Standard Ctn. Volume (cf) | 2.0199 |
