Brand: Panduit | SKU: 314553

Panduit H2X4BL6 | Panduct H2X4BL6 Base Wiring Duct

Name: Panduit H2X4BL6 | Panduct H2X4BL6 Base Wiring Duct
Brand: Anixter
SKU: 314553
Price: 104.43 USD
Availability: InStock

$104.43

Description

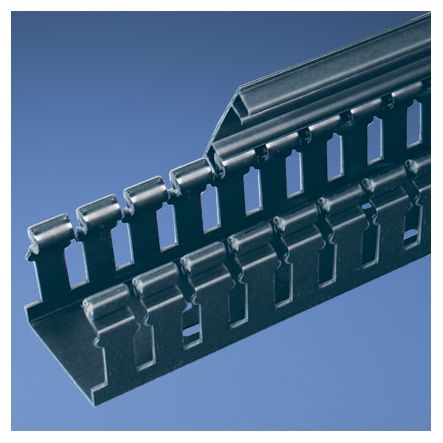

Panduct type H hinged cover wide slot wiring duct, 2 W x 4 H, 6' length, PVC, black.

Specifications
Made of lead-free PVC
Rated for continuous use temperatures up to 122F (50C)
UL94 Flammability Rating V-0
Conforms with NFPA 79-2002 section 14.3.1 requirement for the flame retardant material
Available in Black, Light Gray and White
Provided with standard mounting holes

Brand Name	Panduit
Manufacturer Part Number	H2X4BL6
Item Description	Panduct H2X4BL6 Base Wiring Duct
Application	Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes
Product Type	Base Wiring Duct
Color	Black
Cover Part Number	HC2BL6
Flammability Rating	UL94V-0
Includes	Base Only
Standards Met	RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved
Material	PVC
Mount Method	Mounting Holes
Measurement System	Imperial
Wiring Duct Style	Wide Slot Wiring Duct
Wiring Duct Type	H
Overall Height (In.)	4.1
Overall Height (mm)	104.1
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	2.17
Overall Width (mm)	55.1
Slot Width (In.)	0.31
Slot Width (mm)	7.9
Sub Brand	Panduct
Part Features	Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
