Brand: Panduit
|
SKU:
314532

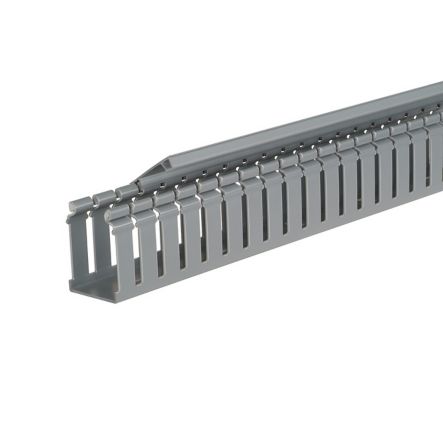

Panduit H3X3LG6 | Panduct H3X3LG6 Type H Hinged Cover Wide Slot Wiring Duct
Regular price
$95.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit H3X3LG6 | Panduct H3X3LG6 Type H Hinged Cover Wide Slot Wir...
Regular price
$95.29
Unit price
Description
Description
Panduit H3X3LG6 | Panduct H3X3LG6 Type H Hinged Cover Wide Slot Wiring Duct
Panduct type H hinged cover wide slot wiring duct, 3 W x 3 H, 6' length, PVC, light gray.
Panduit - H3X3LG6 - Features
- Specifications
- Wide slot/finger design provides excellent wire management in general purpose applications and is compatible a wide range of wire sizes and component types
- Made of lead-free PVC
- Rated for continuous use temperature: 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material
- Provided with standard mounting holes
- Base and cover length is 6 ft.
Specifications
Specifications
Panduit - H3X3LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - H3X3LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | H3X3LG6 |
| Item Description | Panduct H3X3LG6 Type H Hinged Cover Wide Slot Wiring Duct |
| Application | Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | HC3LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Wide Slot Wiring Duct |
| Wiring Duct Type | H |
| Overall Height (In.) | 3.06 |
| Overall Height (mm) | 77.7 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Slot Width (In.) | 0.31 |
| Slot Width (mm) | 7.9 |
| Sub Brand | Panduct |
| Part Features | Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - H3X3LG6 - Package Information
| UPC | 07498313848 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.2967 |
| Standard. Ctn. Quantity | 60 |
| Standard. Ctn. Volume (cf) | 2.9667 |
