Brand: Panduit | SKU: 314534

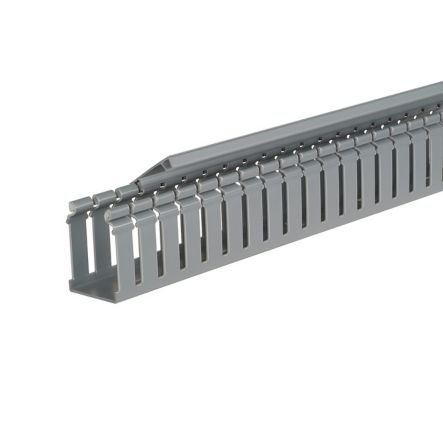

Panduit H4X4LG6 | Panduct H4X4Lg6 Base Wiring Duct

Name: Panduit H4X4LG6 | Panduct H4X4Lg6 Base Wiring Duct
Brand: Anixter
SKU: 314534
Price: 126.66 USD
Availability: InStock

$126.66

Shipping calculated at checkout.

Description

Panduct type H hinged cover wide slot wiring duct, 4 W x 4 H, 6' length, PVC, light gray.

Specifications
Wide slot/finger design provides excellent wire management in general purpose applications and is compatible a wide range of wire sizes and component types
Made of lead-free PVC
Rated for continuous use temperature: 122F (50C)
UL94 Flammability Rating V-0
Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material
Provided with standard mounting holes
Base and cover length is 6 ft.

Brand Name	Panduit
Manufacturer Part Number	H4X4LG6
Item Description	Panduct H4X4Lg6 Base Wiring Duct
Application	Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes
Product Type	Base Wiring Duct
Color	Light Gray
Cover Part Number	HC4LG6
Flammability Rating	UL94V-0
Includes	Base Only
Standards Met	RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved
Material	PVC
Mount Method	Mounting Holes
Measurement System	Imperial
Wiring Duct Style	Wide Slot Wiring Duct
Wiring Duct Type	H
Overall Height (In.)	4.1
Overall Height (mm)	104.1
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	4.25
Overall Width (mm)	108
Slot Width (In.)	0.31
Slot Width (mm)	7.9
Sub Brand	Panduct
Part Features	Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals.
