Panduit HC2YL2 | FIBERRUNNER SNAP-ON HINGE
Regular price
$6.29
Unit price
Brand: Panduit
|
SKU:
9955703
Regular price
$6.29
Unit price
Description
Description

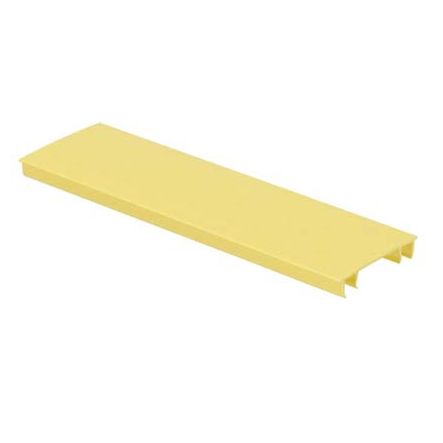

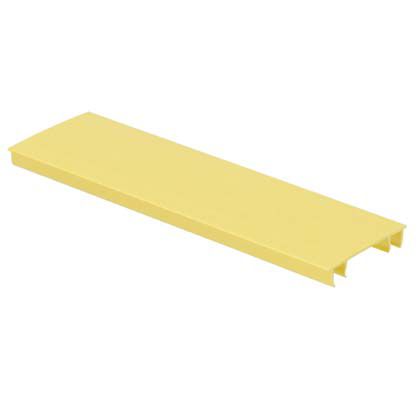

Panduit HC2YL2 | FIBERRUNNER SNAP-ON HINGE
Optional snap-on cover for hinged channel HS2X2YL2 or H2X2YL2. The innovative cover can hinge open to 90° from either side of the channel and be removed completely if desired.
Panduit HC2YL2 Optional Snap-on Cover For Hinged Channel Hs2x2yl2 Or H2x2yl2. The Innovative Cover Can Hinge Open To 90? From Either Side Of The Channel And Be Removed Completely If Desired.
Specifications
Specifications
Panduit - HC2YL2 - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - HC2YL2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HC2YL2 |
| Item Description | FIBERRUNNER SNAP-ON HINGE |
| Application | (1)The Fiber-Runner 2X2 Routing System is System of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution Area |
| Product Type | Cover |
| Channel Material | Rigid PVC |
| Color | Yellow |
| For Use With | HC2YL2,FBC2X2YL |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Overall Height (In.) | 2 |
| Overall Height (mm) | 50.8 |
| Sub Brand | FiberRunner |
| Overall Length (ft.) | 0.6 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 2.17 |
| Overall Width (mm) | 55.1 |
| Standards Met | UL Listed to 2024A,GR-63-CORE,CE Compliant |
| System Dimensions | 2x2 |
| Part Features | Fastest installations, easy to maintain, system strength, versatility, Cable protection. |
Panduit - HC2YL2 - Package Information
| UPC | 07498397873 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.0713 |
| Standard Ctn. Quantity | 20 |
| Standard Ctn. Volume (cf) | 0.7130 |
Panduit - HC2YL2 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
