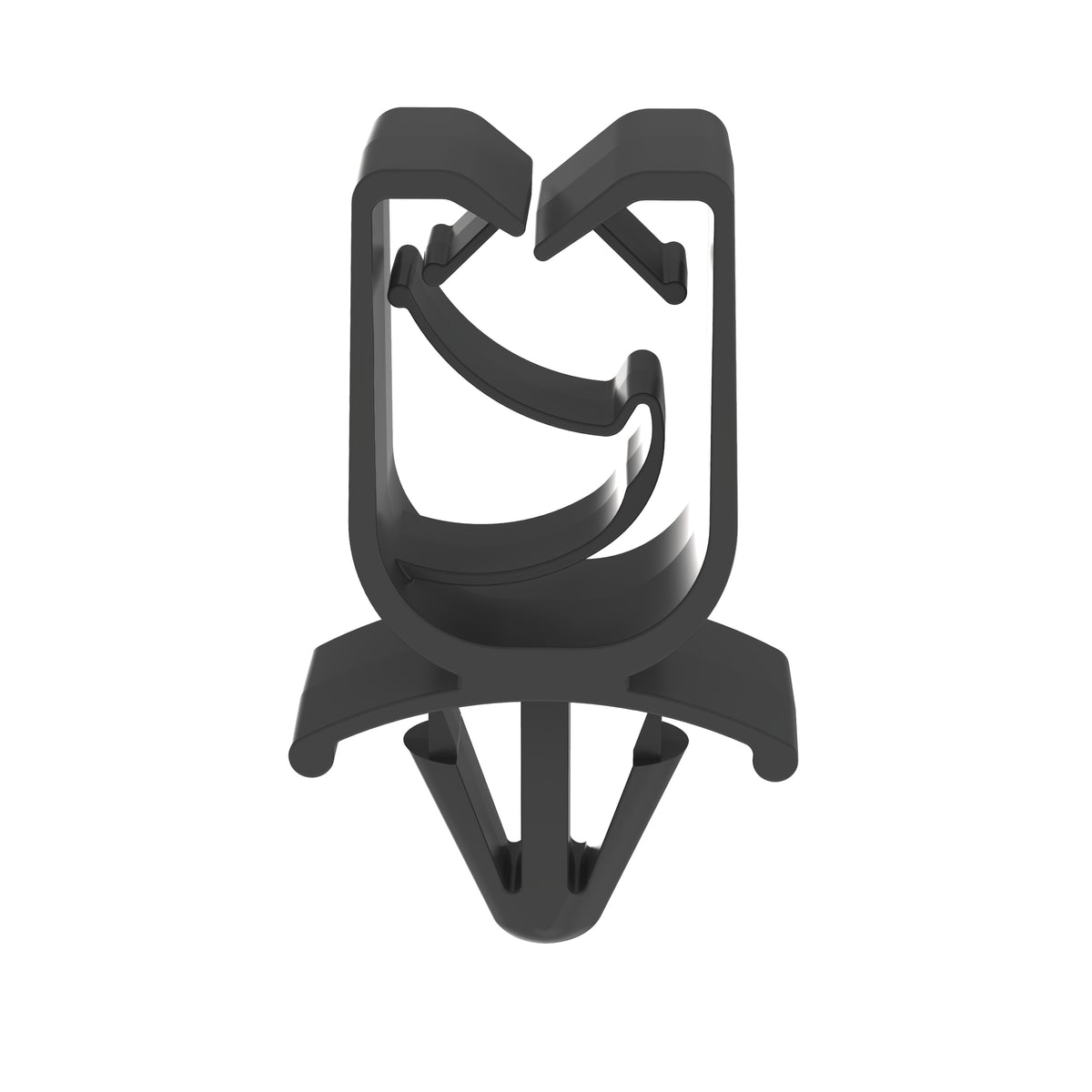

Panduit HCMP06B12-M20 | Harness Clip, Black, PA 6.6, Push Barb, 0.3...
Description
Description
Manage your wire bundles securely with clips, featuring an integral spring and wing design for added stability, ideal for various setups, ensuring a tight hold and organized space.
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, PANDUIT Adhesive Backed Mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Harness Clip, Vertical, 0.24 to 0.47 in Conduit, Push Barb Mounting, Specifications: 0.47 in Dia Bundle, Nylon 6.6, Black, 0.39 in L x 0.59 in W x 1.25 in H Dimensions
Panduit - HCMP06B12-M20 - Features
- Suitable for securing and bundling electrical cables
Specifications
Specifications
Panduit - HCMP06B12-M20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HCMP06B12-M20 |
| Product Type | Wire Clip |
| Application | Vertical and Horizontal Loading Configurations with Integral “Spring” Holds Wire Bundles Tightly |
| Body Material | Nylon 6.6 |
| Color | Black |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.47 |
| Maximum Bundle Diameter (mm) | 12 |
| Maximum Compatible Panel Thickness (In.) | 0.1 |
| Maximum Compatible Panel Thickness (mm) | 3 |
| Mount Method | Push Barb |
| Mounting Hole Diameter (In.) | 0.28 |
| Mounting Hole Diameter (mm) | 7.2 |
| Overall Length (In.) | 0.37 |
| Overall Length (mm) | 9.5 |
| Overall Width (In.) | 0.74 |
| Overall Width (mm) | 19 |
| Overall Height (In.) | 1.24 |
| Overall Height (mm) | 31.6 |
| Standards Met | RoHS Compliant |
| Part Features | Available in vertical and horizontal loading configurations with Integral “spring” holds wire bundles tightly |
| UPC | 07498358185 |
Panduit - HCMP06B12-M20 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - HCMP06B12-M20 - Videos
| Panduit HCMP06B12-M20 Video 1 | Click to View |
|---|
