Brand: Panduit
|
SKU:
249944

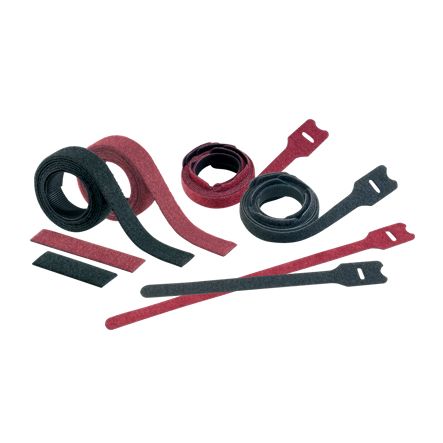

Panduit HLSP5S-X12 Hook And Loop Tie, Plenum Strip, 18.0";L (457mm), .75";W (19.1mm), Maroon, Pack of 10
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HLSP5S-X12 Hook And Loop Tie, Plenum Strip, 18.0";L (4...
Regular price
$66.58
Unit price
Description
Description
Panduit HLSP5S-X12 | TAK-TY HOOK AND LOOP STRIP TIE, MAROON
Hook & Loop Cable Tie, UL Listed, Strip Style, 18.0, Standard Cross Section. Maroon.
Panduit - HLSP5S-X12 - Features
- UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
- Highest tensile strength of any plenum-rated Hook & Loop Ties in the industry
- Adjustable, releasable and reusable multiple times - ideal for applications requiring frequent moves, adds or changes
- Hook and loop material maintains network data integrity by protecting against over-tensioning of high performance copper and fiber cables
- Flammability rating: UL94V-2Note: Minimum 2"; overlap required to achieve loop tensile rating
Specifications
Specifications
Panduit - HLSP5S-X12 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - HLSP5S-X12 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HLSP5S-X12 |
| Item Description | TAK-TY HOOK AND LOOP STRIP TIE, MAROON |
| Product Type | Strip Tie |
| Sub Brand | Tak-Ty |
| Color | Maroon |
| Environment | Indoor |
| Material | Nylon |
| Resistance Properties | Flame Resistance |
| Overall Length (In.) | 18 |
| Overall Length (mm) | 457 |
| Body Width (In.) | 0.75 |
| Body Width (mm) | 19.1 |
| Body Thickness (In.) | 0.1 |
| Body Thickness (mm) | 2.5 |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Installation Temperature (°C) | -17 |
| Minimum Installation Temperature (°F) | 1 |
| Standards Met | RoHS Compliant |
| For Use With | Network Cables |
| Application | Bundle High Performance Communication Cabling in Air Handling Spaces |
Panduit - HLSP5S-X12 - Package Information
| UPC | 07498390422 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0214 |
| Standard. Ctn. Quantity | 100 |
| Standard. Ctn. Volume (cf) | 0.2140 |
