Brand: Panduit
|
SKU:
249947
Panduit HLTP2I-X0 | Hook And Loop Tie, Plenum Loop Style, 8.0";L (203mm), .50";W (12.7mm), Black, Pack of 10
Regular price
$31.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HLTP2I-X0 | Hook And Loop Tie, Plenum Loop Style, 8.0"...
Regular price
$31.34
Unit price
Description
Description

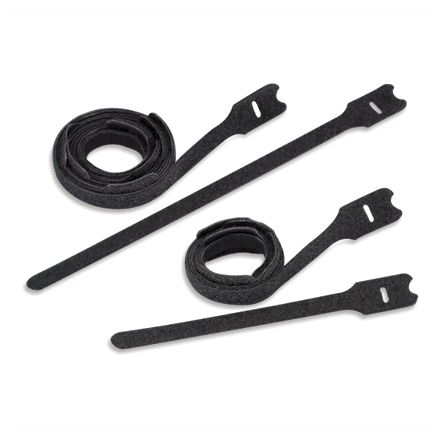

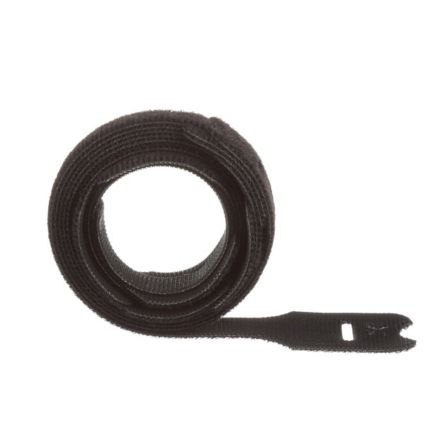

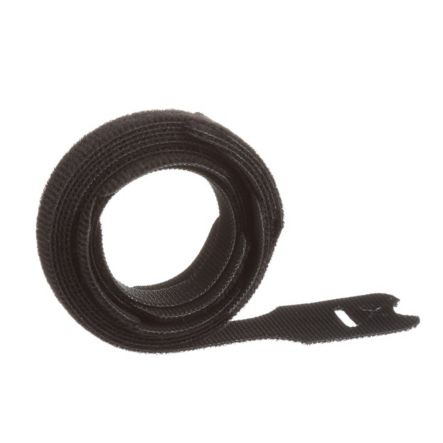

Panduit HLTP2I-X0 | Tak-Ty Hook and Loop Cable Loop Tie, Black
The Tak-Ty Hook and Loop Cable Loop Tie has a slot allows for pre-wrapping of bundles. The loop tie is 8.0 inches L x 0.50 inches W (203.0mm x 12.7mm).
Panduit - HLTP2I-X0 - Features
- UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D)
- Highest tensile strength of any plenum-rated Hook & Loop Ties in the industry
- Adjustable, releasable and reusable multiple times - ideal for applications requiring frequent moves, adds or changes
- Hook and loop material maintains network data integrity by protecting against over-tensioning of high performance copper and fiber cables
- Flammability rating: UL94V-2Note: Minimum 2"; overlap required to achieve loop tensile rating
Specifications
Specifications
Panduit - HLTP2I-X0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - HLTP2I-X0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HLTP2I-X0 |
| Item Description | Tak-Ty Hook and Loop Cable Loop Tie, Black |
| Product Type | Hook & Loop Cable Tie |
| Sub Brand | Tak-Ty |
| Color | Black |
| Environment | Indoor |
| Material | Nylon |
| Resistance Properties | Flame Resistance |
| Overall Length (In.) | 8 |
| Overall Length (mm) | 203 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.1 |
| Body Thickness (mm) | 2.5 |
| Maximum Bundle Diameter (In.) | 1.91 |
| Maximum Bundle Diameter (mm) | 49 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Installation Temperature (°C) | -17 |
| Minimum Installation Temperature (°F) | 1 |
| Standards Met | RoHS Compliant |
| For Use With | Network Cables |
| Application | Bundle High Performance Communication Cabling in Air Handling Spaces |
Panduit - HLTP2I-X0 - Package Information
| UPC | 07498375057 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0162 |
| Standard Ctn. Qty. | 100 |
| Standard Ctn. Volume (cf) | 0.1620 |
