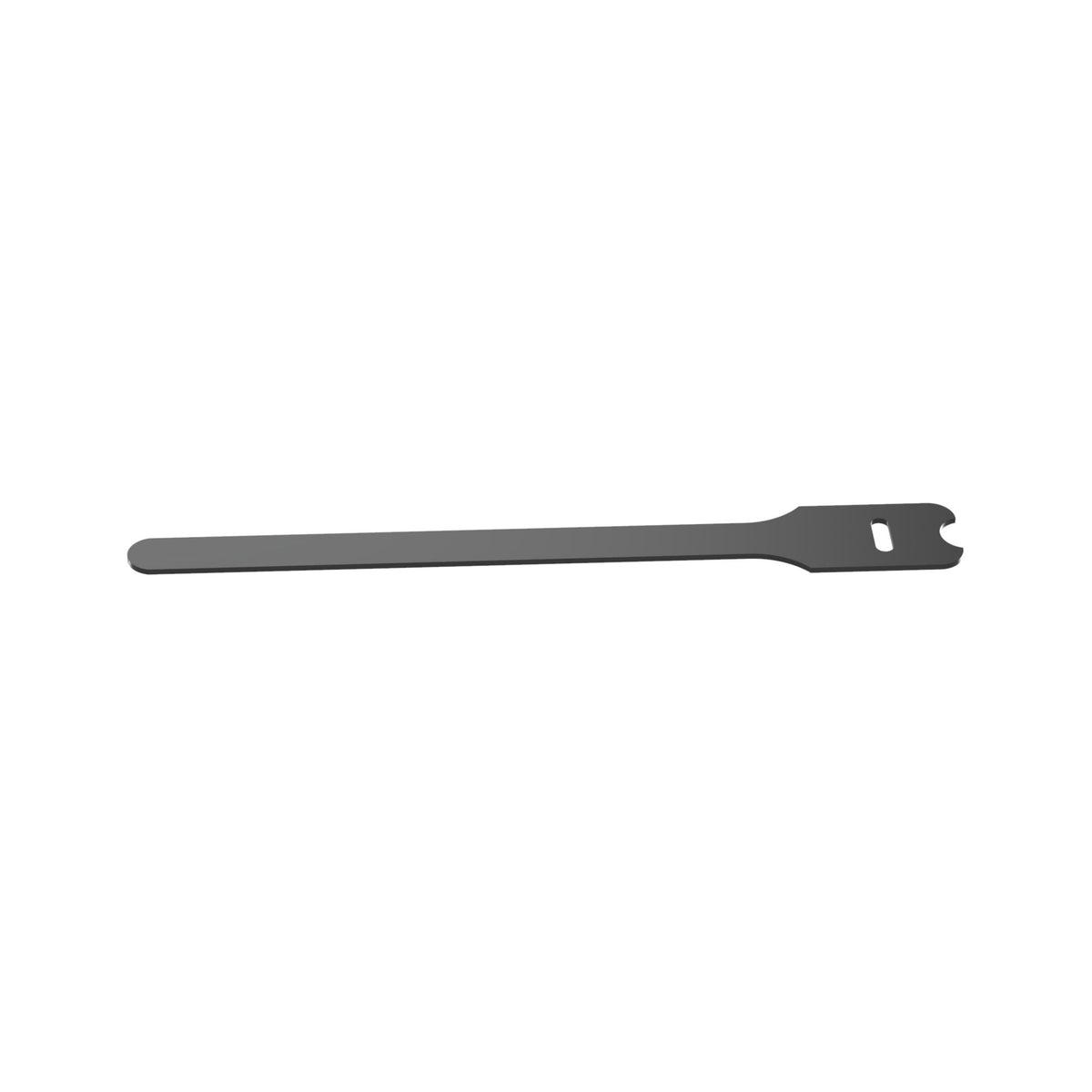

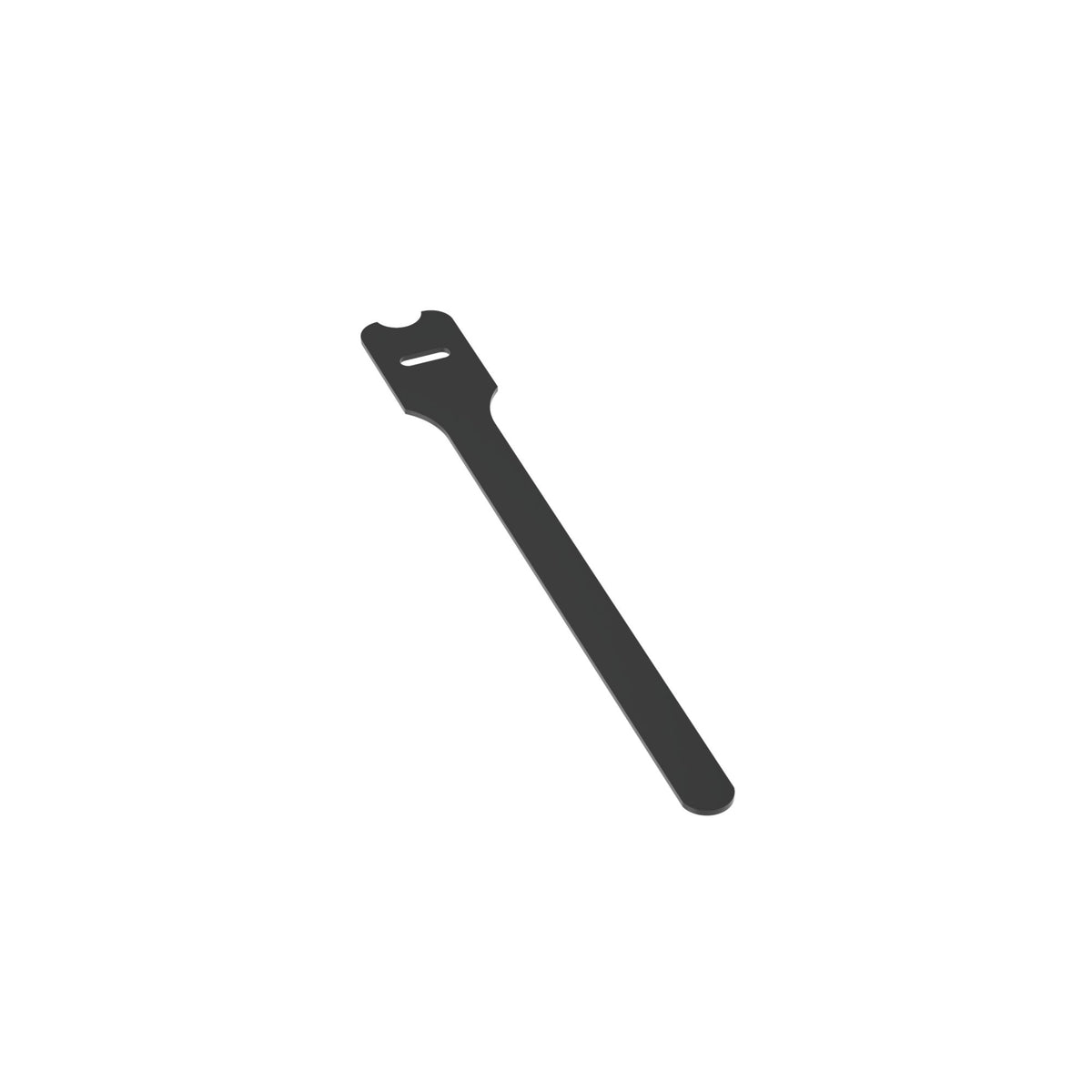

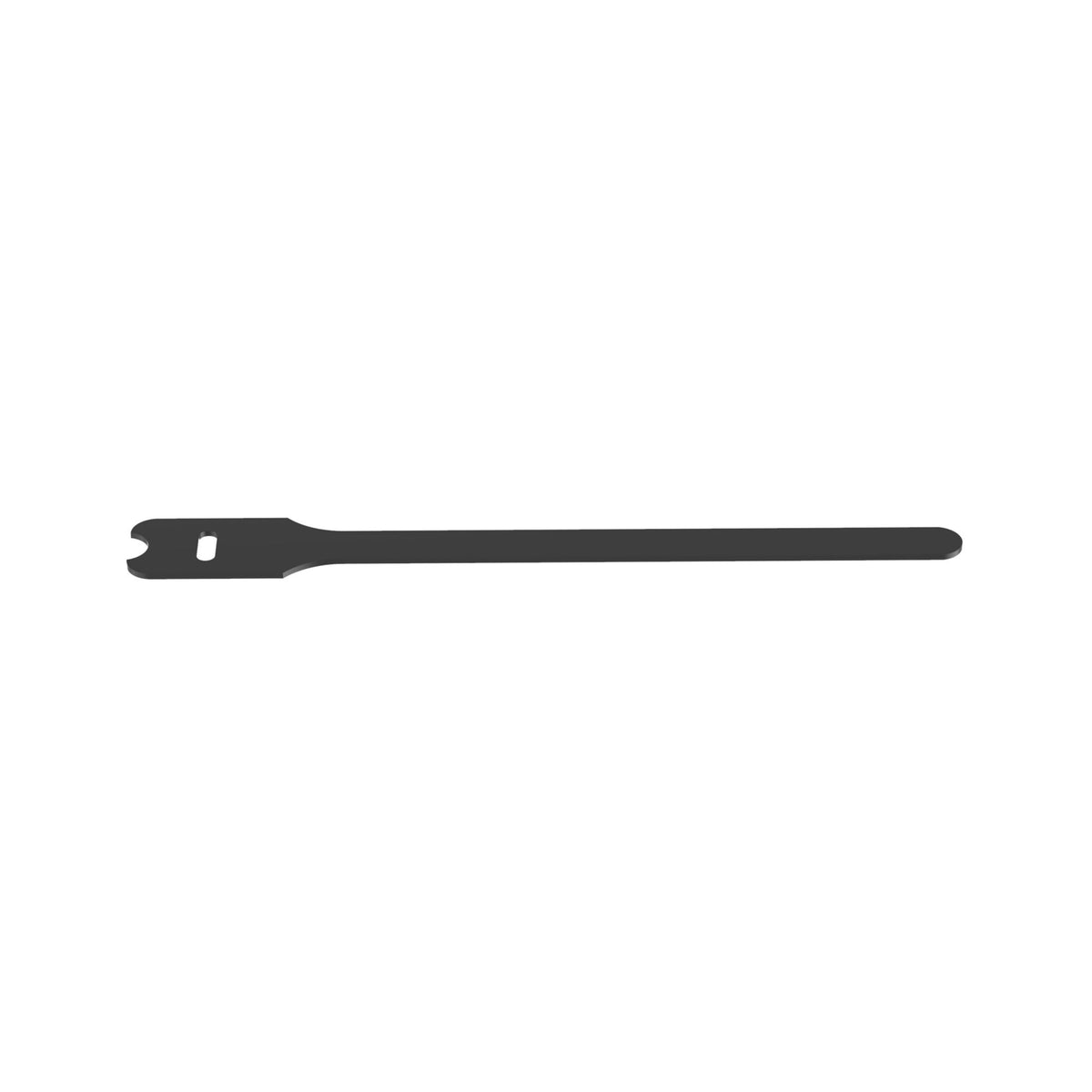

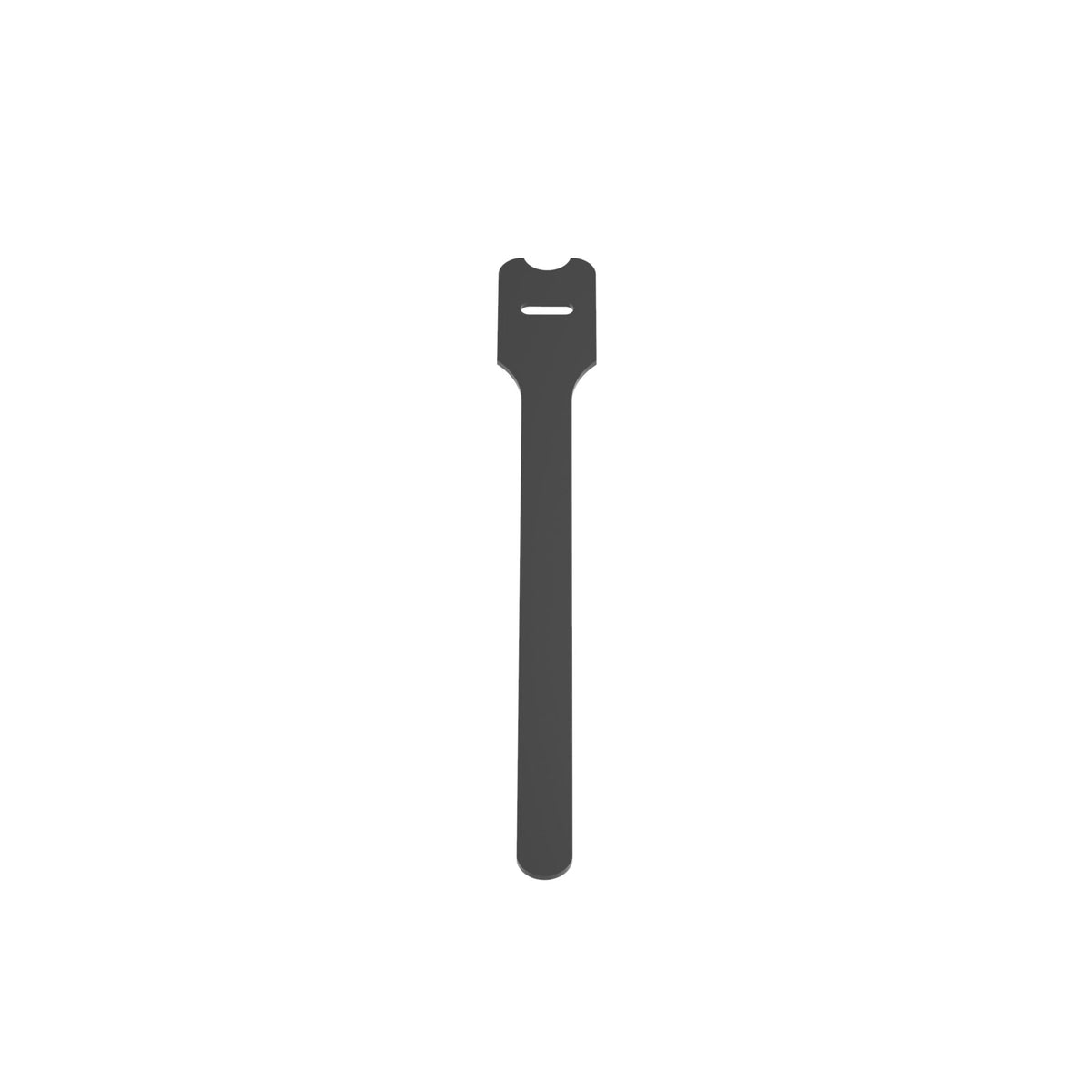

Panduit HLTP3I-X0 | Tak-Ty Hook and Loop Cable Loop Tie, Black
Regular price
$36.55
Unit price
Brand: Panduit
|
SKU:
10127339
Regular price
$36.55
Unit price
Description
Description
Panduit HLTP3I-X0 | Tak-Ty Hook and Loop Cable Loop Tie, Black
The Tak-Ty Hook and Loop Cable Loop Tie has a slot allows for pre-wrapping of bundles. The loop tie is 12 inches L x 0.50 inches W (304.8mm x 25.4mm).
Panduit HLTP3I-X0 Loop Tie 12"3.20" Bundlediameterblack 10/pk Rohs
Specifications
Specifications
Panduit - HLTP3I-X0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - HLTP3I-X0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HLTP3I-X0 |
| Item Description | Tak-Ty Hook and Loop Cable Loop Tie, Black |
| Product Type | Hook & Loop Cable Tie |
| Sub Brand | Tak-Ty |
| Color | Black |
| Environment | Indoor |
| Material | Nylon |
| Resistance Properties | Flame Resistance |
| Overall Length (In.) | 12 |
| Overall Length (mm) | 305 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.1 |
| Body Thickness (mm) | 2.5 |
| Maximum Bundle Diameter (In.) | 3.18 |
| Maximum Bundle Diameter (mm) | 81 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Operating Temperature (°F) | 0 |
| Minimum Installation Temperature (°C) | -17 |
| Minimum Installation Temperature (°F) | 1 |
| Standards Met | RoHS Compliant |
| For Use With | Network Cables |
| Application | Bundle High Performance Communication Cabling in Air Handling Spaces |
Panduit - HLTP3I-X0 - Package Information
| UPC | 07498375058 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0150 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.1505 |
