Panduit HN1.5X2LG6 | Panduct Base Wiring Duct
Description
Description

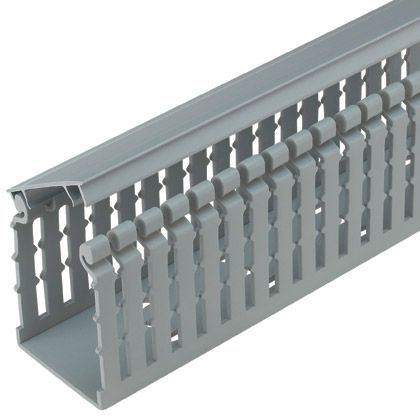

Our Type HN narrow slot wiring duct with hinged cover simplifies wire management in high-density control panels, offering quick access, improved organization, and efficient installation.
Narrow finger, slotted hinged wiring duct.
Panduit innovative dual-sided hinged wiring duct delivers improved wire management and aesthetics for electrical control panel and communication applications. The unique push-on hinged cover is easier to install and remove than traditional wiring duct covers and once installed can be opened from either side of the duct. Hinged cover wiring duct provides faster access to wiring, prevents cover loss, reduces maintenance costs and promotes safety.
Panduit Slot Wall Wiring Duct, Type HN Hinged Cover Narrow, 1-3/4 in Width, 2 in Depth, 6 ft Length, 0.05 in Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, Light Gray
Panduit - HN1.5X2LG6 - Features
- Hinged Cover design with Narrow finger and slot design closely matches the spacing of high-density component
- Upper and lower scorelines allows easy finger and sidewall section removals
- Standard Mounting Holes
- Specifications
- Narrow slot/finger design provides excellent wire management with smaller wire diameters and high-density components such as terminal blocks, input/output devices and other hardware
- Made of lead-free PVC
- Rated for continuous use temperature: 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with standard mounting holes
- Base and cover length is 6 feet
Specifications
Specifications
Panduit - HN1.5X2LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HN1.5X2LG6 |
| Channel | Single |
| Color | Grey |
| Length | 6’ |
| Components | Base |
| Type | Non-Metallic |
| Latching | No |
| UNSPSC Code | 39131709 |
| Duct Dimensions (In.) | 1.75W x 1.98H |
| Product Type | Base Wiring Duct |
| Application | Hinged Cover Narrow Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Color | Light Gray |
| Cover Part Number | HC1.5LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | HN |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Overall Height (In.) | 1.98 |
| Overall Height (mm) | 50.3 |
| Slot Width (In.) | 0.5 |
| Slot Width (mm) | 12.7 |
| UPC | 07498302854 |
Panduit - HN1.5X2LG6 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - HN1.5X2LG6 - Videos
| Panduit HN1.5X2LG6 Video 1 | Click to View |
|---|---|
| Panduit HN1.5X2LG6 Video 2 | Click to View |
