Brand: Panduit
|
SKU:
363215

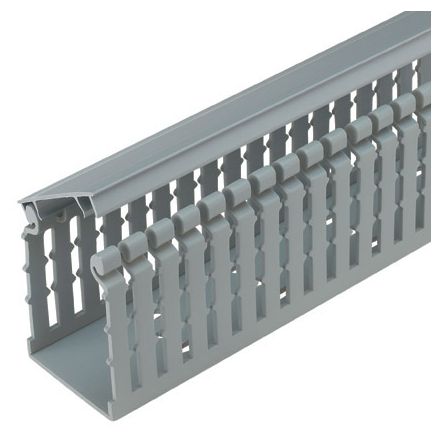

Panduit HN1.5X3LG6 Hinged Duct, Narrow Finger, 1.5";x3.0";x6’;, Light Gray, Base and Covers Sold Separately
Regular price
$80.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HN1.5X3LG6 Hinged Duct, Narrow Finger, 1.5";x3.0"...
Regular price
$80.93
Unit price
Description
Description
Panduit HN1.5X3LG6 | Panduct HN1.5X3LG6 Hinged Cover Narrow Slot Duct, Lt Gray, PVC, 3.06"x6"x1.75"
Panduct type HN hinged cover narrow slot wiring duct, 1.5 W x 3 H, 6' length, PVC, light gray.
Panduit - HN1.5X3LG6 - Features

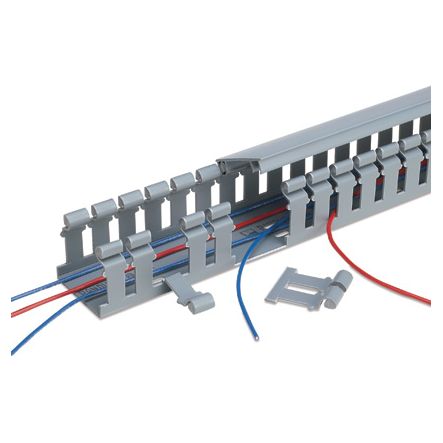

- Narrow finger hinged cover wiring duct.
- Specifications
- Narrow slot/finger design provides excellent wire management with smaller wire diameters and high-density components such as terminal blocks, input/output devices and other hardware
- Made of lead-free PVC
- Rated for continuous use temperature: 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with standard mounting holes
- Base and cover length is 6 feet
Specifications
Specifications
Panduit - HN1.5X3LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - HN1.5X3LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HN1.5X3LG6 |
| Item Description | Panduct HN1.5X3LG6 Hinged Cover Narrow Slot Duct, Lt Gray, PVC, 3.06"x6"x1.75" |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | HC1.5LG6 |
| Flammability Rating | UL94V-0 |
| Standards Met | NFPA 79-2015 section 13.3.1 |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Metric Narrow Slot Wiring Duct |
| Wiring Duct Type | HN |
| Overall Height (In.) | 3.06 |
| Overall Height (mm) | 77.7 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
| Part Features | Hinged Cover design with Narrow finger and slot design closely matches the spacing of high-density compnents.. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - HN1.5X3LG6 - Package Information
| UPC | 07498302855 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.1573 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 3.1467 |
