Brand: Panduit
|
SKU:
363548
Panduit HN3X4WH6 | Panduct HN3X4WH6 Base Wiring Duct
Regular price
$124.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HN3X4WH6 | Panduct HN3X4WH6 Base Wiring Duct
Regular price
$124.08
Unit price
Description
Description

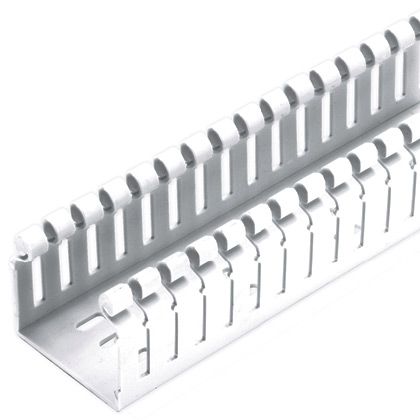

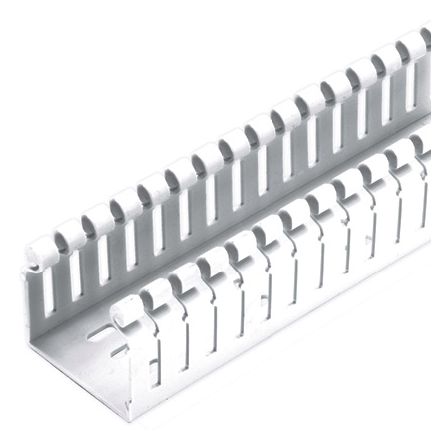

Panduit HN3X4WH6 | Panduct HN3X4WH6 Base Wiring Duct
Panduct type HN hinged cover narrow slot wiring duct, 3 W x 4 H, 6' length, PVC, white.
Panduit - HN3X4WH6 - Features
- Narrow finger hinged cover wiring duct.
- Specifications
- Narrow slot/finger design provides excellent wire management with smaller wire diameters and high-density components such as terminal blocks, input/output devices and other hardware
- Made of lead-free PVC
- Rated for continuous use temperature: 122F (50C)
- UL94 Flammability Rating V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with standard mounting holes
- Base and cover length is 6 feet
Specifications
Specifications
Panduit - HN3X4WH6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - HN3X4WH6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HN3X4WH6 |
| Item Description | Panduct HN3X4WH6 Base Wiring Duct |
| Application | Hinged Cover Narrow Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | HC3LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | HN |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104.1 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | Panduct |
| Part Features | Hinged Cover design with Narrow finger and slot design closely matches the spacing of high-density compnents.. Upper and lower scorelines allows easy finger and sidewall section removals. |
Panduit - HN3X4WH6 - Package Information
| UPC | 07498302868 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.3650 |
| Standard. Ctn. Quantity | 60 |
| Standard. Ctn. Volume (cf) | 3.6500 |
Documents and Downloads
Documents and Downloads
