Brand: Panduit | SKU: 363221

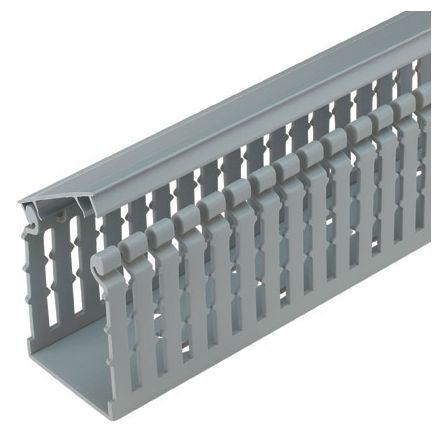

Panduit HN4X4LG6 | Panduct HN4X4LG6 Base Wiring Duct

Name: Panduit HN4X4LG6 | Panduct HN4X4LG6 Base Wiring Duct
Brand: Anixter
SKU: 363221
Price: 130.96 USD
Availability: InStock

$130.96

Shipping calculated at checkout.

Description

Panduct type HN hinged cover narrow slot wiring duct, 4 W x 4 H, 6' length, PVC, light gray.

Narrow finger hinged cover wiring duct.
Specifications
Narrow slot/finger design provides excellent wire management with smaller wire diameters and high-density components such as terminal blocks, input/output devices and other hardware
Made of lead-free PVC
Rated for continuous use temperature: 122F (50C)
UL94 Flammability Rating V-0
Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
Available in Light Gray and White
Provided with standard mounting holes
Base and cover length is 6 feet

Brand Name	Panduit
Manufacturer Part Number	HN4X4LG6
Item Description	Panduct HN4X4LG6 Base Wiring Duct
Application	Hinged Cover Narrow Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes
Product Type	Base Wiring Duct
Color	Light Gray
Cover Part Number	HC4LG6
Flammability Rating	UL94V-0
Includes	Base Only
Standards Met	RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved
Material	PVC
Mount Method	Mounting Holes
Measurement System	Imperial
Wiring Duct Style	Narrow Slot Wiring Duct
Wiring Duct Type	HN
Overall Height (In.)	4.1
Overall Height (mm)	104.1
Overall Length (ft.)	6
Overall Length (m)	1.8
Overall Width (In.)	4.25
Overall Width (mm)	108
Slot Width (In.)	0.2
Slot Width (mm)	5
Sub Brand	Panduct
Part Features	Hinged Cover design with Narrow finger and slot design closely matches the spacing of high-density compnents.. Upper and lower scorelines allows easy finger and sidewall section removals.
