Panduit HSEC0.8-X | Heat Shrink Thick Adhesive End Cap, .8";(2...
Description
Description

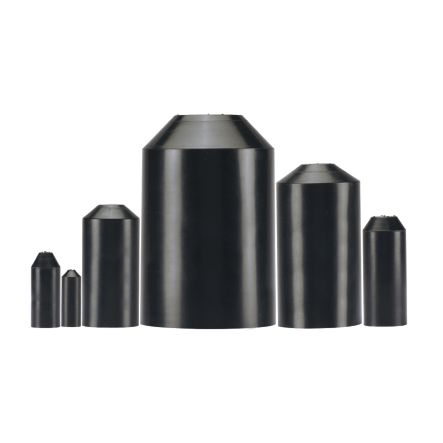

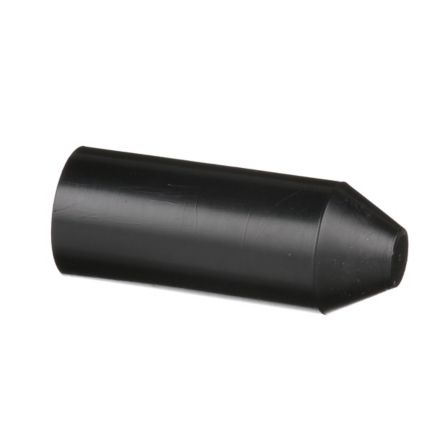

The HSEC0.8-X Crosslinked Polyolefin Heat Shrink End Cap features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires and cables in wet locations. Voltage rating of 600 V. Shrink ratio: 2.5:1 (HSEC). Temperature range: -40°F to 257°F (-40°C to 125°C). Cross-linked Polyolefin. 0.79" (20.1 mm) minimum expanded I.D. Color Black. 10 per package.
Panduit - HSEC0.8-X - Features
- Thick Wall End Caps provide protection for sealing ends of wire or cable
- Shrink ratio of 3:1 insulates a wide range of diameters and irregular shapes, which reduces inventory costs
- Cross-linked UV resistant material improves chemical and temperature resistance
- Hot melt adhesive seals and insulates in one step to speed installation
Specifications
Specifications
Panduit - HSEC0.8-X - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSEC0.8-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSEC0.8-X |
| Item Description | Wet-Shrink HSEC0.8-X End Cap, Black, PO, 2.17" L, 0.3" Recovered ID, 0.79" ID |
| Product Type | Heat Shrink End Cap |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Color | Black |
| Flammability Rating | None |
| Material | Cross-Linked Polyolefin |
| Resistance Properties | Moisture Resistant |
| Shrink Ratio | 2.5:1 |
| Standards Met | RoHS Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Sub Brand | Wet-Shrink |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Recovered Inside Diameter (In.) | 0.3 |
| Maximum Recovered Inside Diameter (mm) | 7.6 |
| Minimum Expanded Inside Diameter (In.) | 0.79 |
| Minimum Expanded Inside Diameter (mm) | 20.1 |
| Nominal Recovered Wall Thickness (In.) | 0.1 |
| Nominal Recovered Wall Thickness (mm) | 2.4 |
| Overall Length (In.) | 2.17 |
| Overall Length (mm) | 55.1 |
| Part Features | 2.5:1 Shrink ratio, wet applications. Adhesive lined inner wall seals and provides excellent protection against moisture |
Panduit - HSEC0.8-X - Package Information
| UPC | 07498341572 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0185 |
| Standard Ctn. Qty. | 100 |
| Standard Ctn. Volume (cf) | 0.1850 |
Panduit - HSEC0.8-X - Videos
| Video 1 | Click to View |
|---|
