Brand: Panduit
|
SKU:
HSEC2.0-5

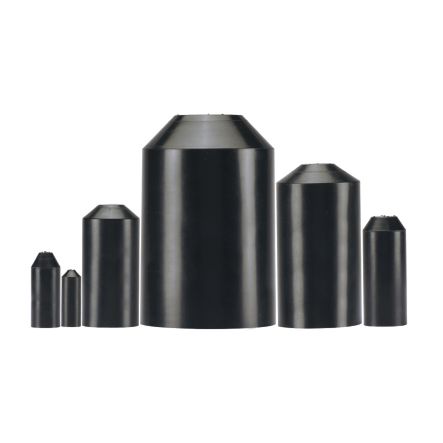

Panduit HSEC2.0-5 | Heat shrink end cap adhesive lined, 2.2"; (57mm) min. expanded I.D., adhesive lined black cross-linked polyolefin
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSEC2.0-5 | Heat shrink end cap adhesive lined, 2.2"; ...
Regular price
$19.78
Unit price
Description
Description
Panduit HSEC2.0-5 | HSEC2.0-5 Heat Shrink End Cap
Heat shrink end cap adhesive lined, 2.2" (57mm) min. expanded I.D., adhesive lined black cross-linked polyolefin, 5 pc. package quantity.
Specifications
Specifications
Panduit - HSEC2.0-5 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSEC2.0-5 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSEC2.0-5 |
| Item Description | HSEC2.0-5 Heat Shrink End Cap |
| Product Type | Heat Shrink End Cap |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Shrink Ratio | 2.5:1 |
| Standards Met | RoHS Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Recovered Inside Diameter (In.) | 0.98 |
| Maximum Recovered Inside Diameter (mm) | 24.9 |
| Minimum Expanded Inside Diameter (In.) | 2.25 |
| Minimum Expanded Inside Diameter (mm) | 57.2 |
| Nominal Recovered Wall Thickness (In.) | 0.15 |
| Nominal Recovered Wall Thickness (mm) | 3.8 |
| Overall Length (In.) | 4.29 |
| Overall Length (mm) | 109 |
| Part Features | 2.5:1 Shrink ratio, wet applications. Adhesive lined inner wall seals and provides excellent protection against moisture |
Panduit - HSEC2.0-5 - Package Information
| UPC | 07498391333 |
|---|---|
| Standard Pkg. Qty. | 5 |
| Standard Package Volume (cf) | 0.1794 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 1.7943 |
