Brand: Panduit
|
SKU:
810885
Panduit HSEC4.0-2 | HSEC4.0-2 Heat Shrink End Cap
Regular price
$36.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSEC4.0-2 | HSEC4.0-2 Heat Shrink End Cap
Regular price
$36.55
Unit price
Description
Description

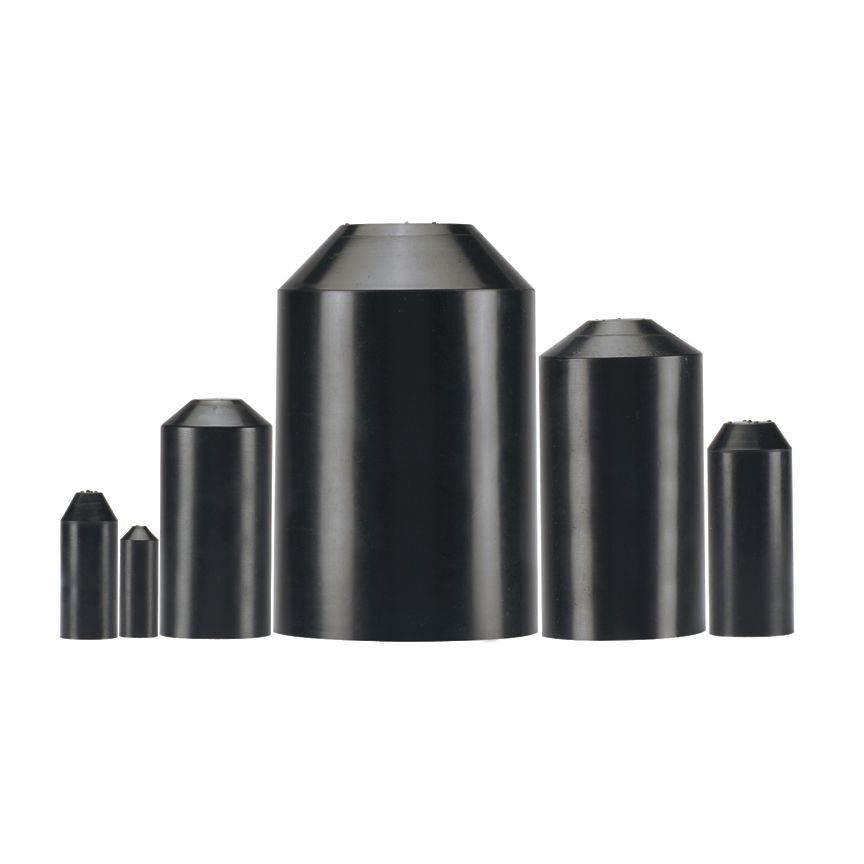

Panduit HSEC4.0-2 | HSEC4.0-2 Heat Shrink End Cap
Heat shrink end cap adhesive lined, 4.1" (105mm) min. expanded I.D., adhesive lined black cross-linked polyolefin, 2 pc. package quantity.
Panduit HSEC4.0-2 Heat Shrink Adh End Cap105mm Min. Expanded I.d
Specifications
Specifications
Panduit - HSEC4.0-2 - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSEC4.0-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSEC4.0-2 |
| Item Description | HSEC4.0-2 Heat Shrink End Cap |
| Product Type | Heat Shrink End Cap |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Color | Black |
| Material | Cross-Linked Polyolefin |
| Shrink Ratio | 2.5:1 |
| Standards Met | RoHS Compliant |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Recovered Inside Diameter (In.) | 1.78 |
| Maximum Recovered Inside Diameter (mm) | 45.2 |
| Minimum Expanded Inside Diameter (In.) | 3.92 |
| Minimum Expanded Inside Diameter (mm) | 99.6 |
| Nominal Recovered Wall Thickness (In.) | 0.15 |
| Nominal Recovered Wall Thickness (mm) | 3.8 |
| Overall Length (In.) | 5.37 |
| Overall Length (mm) | 136.4 |
Panduit - HSEC4.0-2 - Package Information
| UPC | 07498340699 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.2640 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 1.3201 |
Panduit - HSEC4.0-2 - Videos
| Video 1 | Click to View |
|---|
Documents and Downloads
Documents and Downloads
