Brand: Panduit
|
SKU:
455459
Panduit HSECFR0.8-XY | Heat Shrink Thick Adhesive End Cap, .8";(20mm), Flame Retardant Cross-linked Polyolefin With Adhesive,
Regular price
$14.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HSECFR0.8-XY | Heat Shrink Thick Adhesive End Cap, .8"...
Regular price
$14.15
Unit price
Description
Description

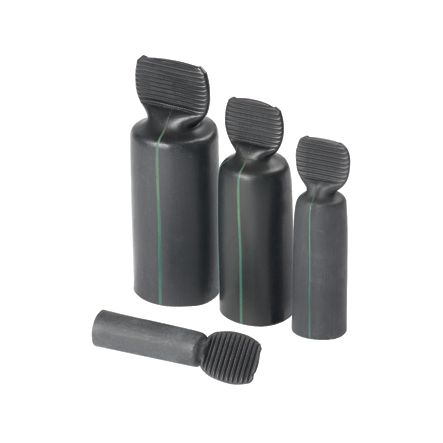

Panduit HSECFR0.8-XY | HSECFR0.8-XY Heat Shrink End Cap
Heat shrink end cap flame retardant adhesive lined, .8" (20mm) min. expanded I.D., flame retardant cross-linked polyolefin with adhesive, 10 pc. package quantity.
Panduit - HSECFR0.8-XY - Features
- Panduit HSECFR0.8-XY Heat Shrink Thick Adhesive End Cap, .8";(20mm), Flame Retardant Cross-linked Polyolefin With Adhesive,
Specifications
Specifications
Panduit - HSECFR0.8-XY - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HSECFR0.8-XY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSECFR0.8-XY |
| Item Description | HSECFR0.8-XY Heat Shrink End Cap |
| Product Type | Heat Shrink End Cap |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Color | Black |
| Flammability Rating | V-0 |
| Material | Cross-Linked Polyolefin |
| Resistance Properties | Flame Retardant |
| Shrink Ratio | 3:1 |
| Standards Met | RoHS Compliant |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Maximum Recovered Inside Diameter (In.) | 0.24 |
| Maximum Recovered Inside Diameter (mm) | 6.1 |
| Minimum Expanded Inside Diameter (In.) | 0.75 |
| Minimum Expanded Inside Diameter (mm) | 19.1 |
| Nominal Recovered Wall Thickness (In.) | 0.09 |
| Nominal Recovered Wall Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.5 |
| Overall Length (mm) | 63.5 |
Panduit - HSECFR0.8-XY - Package Information
| UPC | 07498310704 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0705 |
| Standard Ctn. Qty. | 100 |
| Standard Ctn. Volume (cf) | 0.7051 |
Panduit - HSECFR0.8-XY - Videos
| Video 1 | Click to View |
|---|
