Panduit HSECFR1.5-5Y | Heat Shrink End Cap
Regular price
$19.65
Unit price
Brand: Panduit
|
SKU:
HSECFR1.5-5
Regular price
$19.65
Unit price
Description
Description

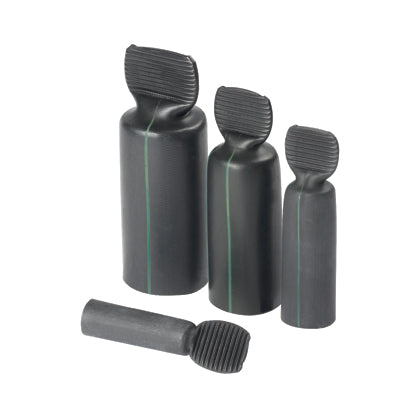

Panduit HSECFR1.5-5Y | Heat Shrink End Cap
Our heat-shrinkable end cap seals and protects wires, cables, pipes, and conduits in wet environments, offering a durable, flame-retardant barrier with an easy adhesive application.
Panduit Wet-Shrink Heat Shrink End Cap, Adhesive Lined Flame-Retardant, Series: HSECFR, 600 VAC, 1-1/2 in ID Expanded, 0.47 in ID Recovered, -67 to 239 deg F, 3:1 Shrink Ratio, 3-1/2 in Length, Polyolefin, Black
Panduit - HSECFR1.5-5Y - Features
- Flame retardant cross linked polyolefin with adhesive
- Adhesive lined inner wall seals and provides excellent protection against moisture
Specifications
Specifications
Panduit - HSECFR1.5-5Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HSECFR1.5-5Y |
| Product Type | Heat Shrink End Cap |
| Application | Wet Applications. Applications Include Insulating and Protecting Wires and Cables |
| Color | Black |
| Flammability Rating | V-0 |
| Material | Cross-Linked Polyolefin |
| Shrink Ratio | 3:1 |
| Standards Met | RoHS Compliant |
| Maximum Copper Conductor Size (AWG) | 6.2/0 |
| Maximum Copper Conductor Size (kcmil) | 350 |
| Minimum Copper Conductor Size (AWG) | 36557 |
| Minimum Copper Conductor Size (kcmil) | 133.07 |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Maximum Recovered Inside Diameter (In.) | 0.47 |
| Maximum Recovered Inside Diameter (mm) | 11.9 |
| Minimum Expanded Inside Diameter (In.) | 1.5 |
| Minimum Expanded Inside Diameter (mm) | 38.1 |
| Nominal Recovered Wall Thickness (In.) | 0.16 |
| Nominal Recovered Wall Thickness (mm) | 4.1 |
| UPC | 07498310706 |
Panduit - HSECFR1.5-5Y - Videos
| Panduit HSECFR1.5-5Y Video 1 | Click to View |
|---|
