Brand: Panduit
|
SKU:
PAN-HST0.8-6-XY
Panduit HST0.8-6-XY | Heat Shrink | UPC - 07498310725
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HST0.8-6-XY | Heat Shrink | UPC - 07498310725
Regular price
$10.81
Unit price
Brand: Panduit
|
SKU:
PAN-HST0.8-6-XY
Regular price
$10.81
Unit price
Shipping calculated at checkout.
Description
Description

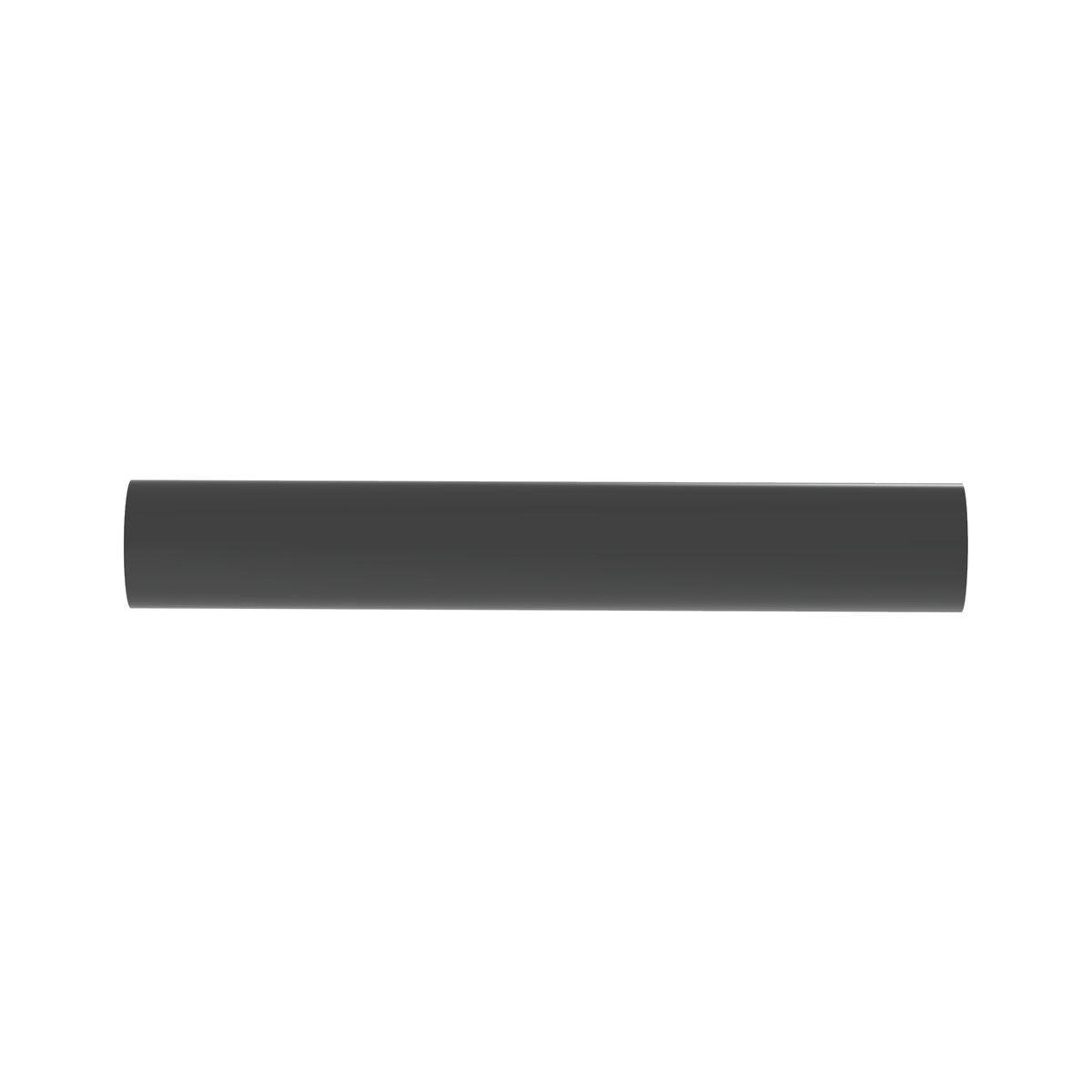

Panduit Wet-Shrink Heat Shrink Tubing, Adhesive Lined, Series: HST, 600 VAC, 3/4 in Inner Dia Expanded, 0.22 in Inner Dia Recovered, Thick Wall, 0.09 in Wall Thickness Recovered, 8 to 1/0 AWG Wire, 3:1 Shrink, 6 in Length, -67 to 230 deg F, 248 deg F Shrink, Polyolefin, Black
Features + Benefits
- Adhesive lined inner wall shall seal and protect against moisture
- The heat shrink tube shall be suitable for direct burial according to UL 486D
- Flame-retardant outer wall
Panduit HST0.8-6-XY | Heat Shrink | UPC - 07498310725 Key Specs
| Note | HST0.8-6-XY replaces HST0.8-6-X |
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.1 |
| Nominal Recovered Wall Thickness (In.) | 0.09 |
| Nominal Recovered Wall Thickness (mm) | 2.3 |
| Sub Brand | Wet-Shrink |
| Overall Length (In.) | 6 |
| Overall Length (ft.) | 0.5 |
| Overall Length (m) | 0.152 |
| Overall Length (mm) | 152.4 |
| Resistance Properties | Outer wall is flame retardant; Suitable for wet locations; Suitable for outdoor, direct sunlight applications |
| Standards Met | UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AMS-DTL-23053/15 |
Panduit HST0.8-6-XY | Heat Shrink | UPC - 07498310725 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - HST0.4-3-Q2Y Product Page | Download and View |
| Specification Sheets | Thick Wall Polyolefin Heat Shrink Tubing: HSSP02-WW-ENG | Download and View |
Panduit HST0.8-6-XY | Heat Shrink | UPC - 07498310725 Environmental Information
| Panduit's RoHS Statement | Download and View |
