Brand: Panduit
|
SKU:
HST1.1-12-5

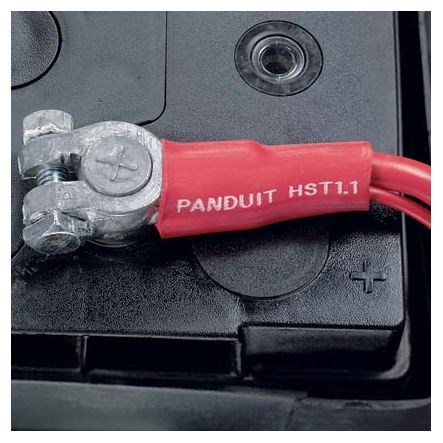

Panduit HST1.1-12-5Y | Wet-Shrink HST1.1-12-5Y Heat Shrink
Regular price
$90.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit HST1.1-12-5Y | Wet-Shrink HST1.1-12-5Y Heat Shrink
Regular price
$90.07
Unit price
Description
Description
Panduit HST1.1-12-5Y | Wet-Shrink HST1.1-12-5Y Heat Shrink
Thick wall adhesive lined, 1.1" (27.9mm) diameter, 12.0" (304.8mm) length, adhesive lined black cross-linked polyolefin, 5 pc. package quantity.
Specifications
Specifications
Panduit - HST1.1-12-5Y - Product Categories
- Wire Routing, Management & Protection
- Heat Shrink Tubing
Panduit - HST1.1-12-5Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | HST1.1-12-5Y |
| Item Description | Wet-Shrink HST1.1-12-5Y Heat Shrink |
| Product Type | Heat Shrink |
| Adhesive Lined | Yes |
| Color | Black |
| Material | Adhesive Lined Cross-Linked Polyolefin |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Operating Temperature (°F) | -67 |
| Nominal Recovered Wall Thickness (In.) | 0.12 |
| Nominal Recovered Wall Thickness (mm) | 3 |
| Sub Brand | Wet-Shrink |
| Overall Length (In.) | 12 |
| Overall Length (ft.) | 0.98 |
| Overall Length (m) | 0.3 |
| Overall Length (mm) | 304.8 |
| Standards Met | UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AS23053 |
| Shrink Ratio | 3:1 |
| Shrink Temperature (°C) | 120 |
| Shrink Temperature (°F) | 248 |
| Maximum Recovered Inside Diameter (In.) | 0.39 |
| Maximum Recovered Inside Diameter (mm) | 9.5 |
| Minimum Expanded Inside Diameter (In.) | 1.1 |
| Minimum Expanded Inside Diameter (mm) | 27.9 |
| Application | For Wet Locations; Insulating and protecting wires and cables; Suitable for direct burial |
Panduit - HST1.1-12-5Y - Package Information
| UPC | 07498310729 |
|---|---|
| Standard Package Quantity | 5 |
| Standard Package Volume (cf) | 0.1320 |
| Standard. Ctn. Quantity | 50 |
| Standard. Ctn. Volume (cf) | 1.3201 |
Panduit - HST1.1-12-5Y - Videos
| Video 1 | Click to View |
|---|
